306-011-420-112

Edgeboard Connectors Overview

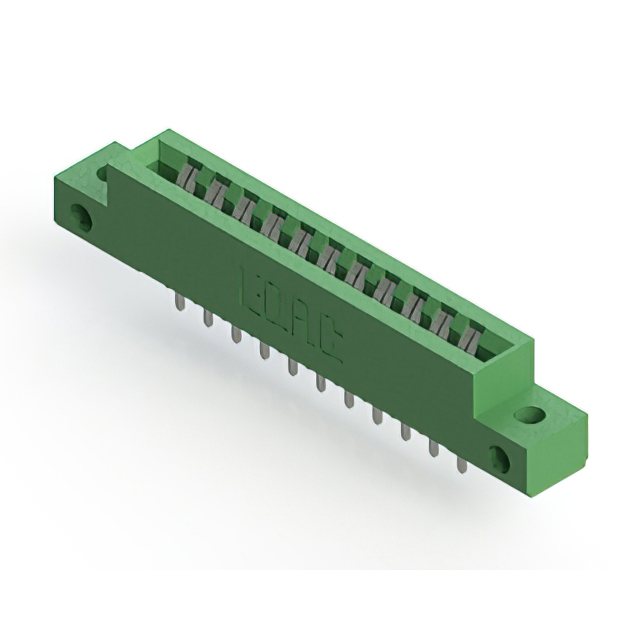

The EDAC Inc. model 306-011-420-112 is a standard card edge connector receptacle featuring 11 positions in a single row configuration. It utilizes a 3.96 mm (0.156 inch) contact spacing and accommodates printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). The component employs gold-plated copper alloy contacts for reliable signal transmission and solder pin termination methods. Designed for vertical panel mount installation, the housing is constructed from thermoplastic polyester material.

Edgeboard Connectors Feature Summary

• Accepts nominal 0.062 inch thick printed circuit boards
• Features low profile insulator body construction
• Utilizes single centreline row contact arrangement

Edgeboard Connectors Applications

• Card edge interconnect applications
• Rack and panel mounting systems
• Industrial control module connections

Edgeboard Connectors Procurement Notes

Verify the specific contact finish requirements against project specifications, as datasheet variations may indicate tin or gold plating options. Confirm that the 1.57 mm board thickness tolerance aligns with the mechanical constraints of the target assembly. Ensure the vertical panel mount orientation matches the enclosure design before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a single-row card edge interface with 3.96 mm pitch is required. The 11-position count suits moderate density interconnect needs. Verify compatibility with the target PCB edge guide dimensions and ensure the operating temperature range meets environmental conditions.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series provides versatile interconnect solutions for computing, storage, medical, aerospace, and industrial sectors. The 306 series is characterized by robust construction and compliance with industry-standard mechanical dimensions for reliable performance.

Edgeboard Connectors Replacement Considerations

Cross-reference compatible parts within the EDAC 306 series that share identical 11-position counts and 3.96 mm spacing. Verify mechanical footprint and electrical ratings match before substituting.
