306-011-500-101

Edgeboard Connectors Overview

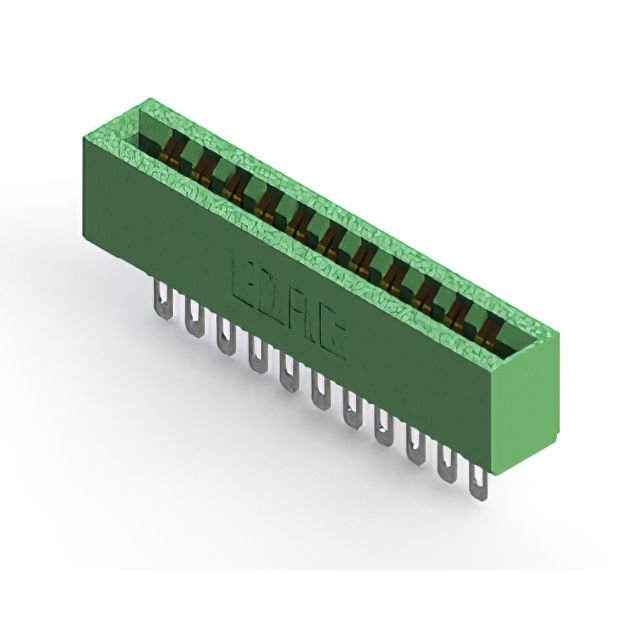

The EDAC Inc. model 306-011-500-101 is a dual-edge female card edge connector featuring 22 positions with a 0.156-inch (3.96 mm) contact spacing. Designed for vertical panel mount installation, it utilizes gold-plated copper alloy contacts and solder pin termination methods. The component accommodates printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). Constructed with a thermoplastic polyester insulator body, this connector supports a current rating of 5 amperes per contact.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration providing connection points on both sides of the board interface
• Vertical panel mount orientation ensuring secure structural alignment within equipment enclosures
• Gold-plated contact surfaces enhancing conductivity and corrosion resistance for reliable signal transmission

Edgeboard Connectors Applications

• Industrial control systems requiring robust peripheral interconnections
• Telecommunications infrastructure utilizing standard card edge module interfaces
• Test and measurement equipment needing high-density signal routing

Edgeboard Connectors Procurement Notes

Verify that the specific part number matches the required 22-position configuration and dual-edge design before procurement. Confirm that the vertical panel mount style aligns with the mechanical constraints of the target enclosure. Ensure that the solder pin termination method is compatible with the assembly process used in the manufacturing line. Cross-reference the current rating requirements against the operational load to guarantee safe performance levels.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female interface is necessary for vertical mounting applications. Consider the 0.156-inch pitch requirement to ensure compatibility with existing board layouts. Evaluate the 5-ampere current capacity against the system's electrical demands. Verify that the thermoplastic polyester material meets environmental and thermal specifications for the intended operating conditions.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 306 series, which offers various contact terminations and mounting options. The series includes multiple card guide solutions and high-temperature insulators. Related products in this family provide alternative position counts and row configurations to suit diverse electronic assembly needs.
