306-011-520-107

Edgeboard Connectors Overview

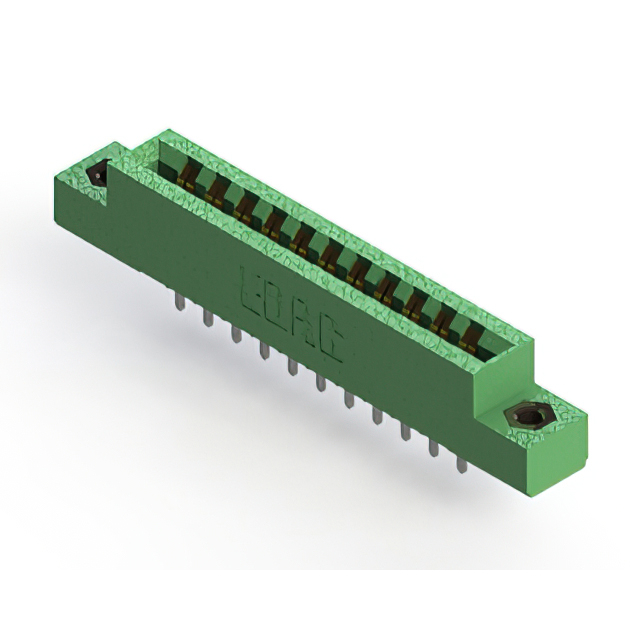

The EDAC Inc. 306-011-520-107 is a standard card edge connector featuring 22 positions arranged in a single row with a 3.96 mm pitch. Designed for panel mounting, it utilizes copper alloy contacts with gold plating to ensure reliable signal transmission. The unit supports a current rating of 5 A and operates within a temperature range of -40°C to +105°C. It accommodates PCB thicknesses between 0.054 inches and 0.070 inches. The housing is constructed from thermoplastic material, providing structural integrity and electrical insulation.

Edgeboard Connectors Feature Summary

• Features double-sided contact configuration for robust board connection
• Incorporates M3 threaded inserts for secure panel mounting
• Utilizes gold-plated copper alloy contacts for corrosion resistance
• Designed with a vertical orientation for standard card edge applications

Edgeboard Connectors Applications

• Industrial control systems requiring durable interconnects
• Communication equipment utilizing standard card edge modules
• Automotive electronics interfaces needing high reliability
• Test and measurement instrumentation hardware

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's latest documentation to confirm exact mechanical dimensions and flange characteristics. Ensure compatibility with the target printed circuit board thickness specifications before integration. Cross-reference the contact plating requirements with environmental operating conditions to guarantee long-term performance stability in the intended application environment.

Edgeboard Connectors Selection Notes

Select this component when a 3.96 mm pitch card edge connector is required for panel-mounted installations. The 22-position count suits applications needing moderate channel density without excessive footprint consumption. Consider the thermal rating and material composition if the operating environment involves elevated temperatures or requires specific chemical resistance properties beyond standard industrial norms.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series, which specializes in standard card edge connectors. The series is characterized by its use of thermoplastic housings and copper alloy contacts. These connectors are engineered for general-purpose electronic interconnections, offering a balance of mechanical strength and electrical performance suitable for various commercial and industrial electronic assemblies.

Edgeboard Connectors Replacement Considerations

Direct substitutes may include other EDAC 306 series variants with matching position counts and pitch specifications. Verify that alternative parts maintain identical mounting hole patterns and flange configurations to ensure mechanical interchangeability without modifying the host panel design.
