306-012-500-107

Edgeboard Connectors Overview

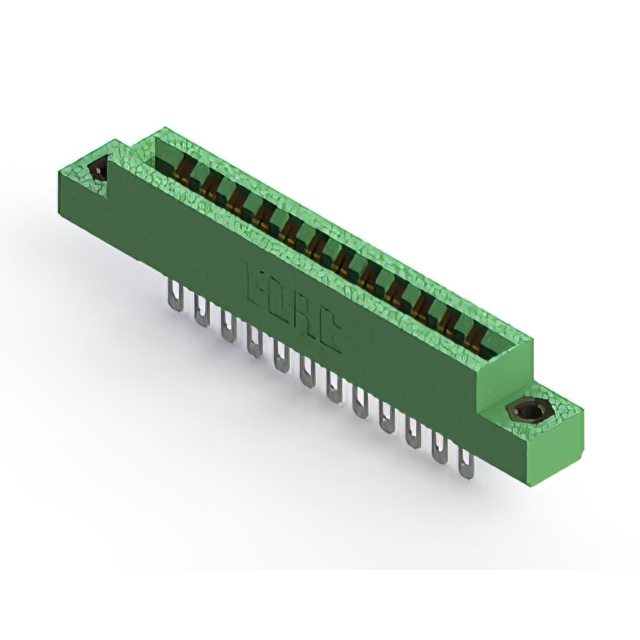

The EDAC Inc. 306-012-500-107 is a standard card edge connector designed for single-sided PCB insertion. It features 24 positions with a 3.96 mm (0.156 inch) contact spacing arranged in a single centerline row. The connector accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). Contacts are gold-plated copper alloy, rated for 5 A current. The insulator body is constructed from thermoplastic polyester, providing vertical panel mount installation.

Edgeboard Connectors Feature Summary

• Single centerline row configuration for standard card edge applications
• Gold-plated contacts ensure reliable electrical connection and corrosion resistance
• Low profile insulator body accommodates space-constrained panel mounts

Edgeboard Connectors Applications

• Industrial control panels requiring robust card edge interfaces
• Telecommunications equipment backplanes
• Test and measurement instrumentation modules

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm contact plating thickness and material composition. Ensure the target PCB thickness aligns with the 1.57 mm design specification. Confirm that the panel mount style matches the mechanical constraints of the enclosure. Cross-reference the manufacturer datasheet for precise dimensional tolerances before finalizing procurement.

Edgeboard Connectors Selection Notes

Select this component when a 24-position interface with 3.96 mm pitch is required. The vertical orientation suits panel-mounted designs. Verify compatibility with single-sided card edge PCBs. Consider the 5 A current rating for power distribution needs. Ensure the thermoplastic polyester housing meets environmental requirements for the intended operating temperature range.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series, characterized by .156 inch contact spacing. The series offers various position counts and mounting styles. The 306-012-500-107 specifically denotes a 24-position female header variant. It utilizes wire hole type contacts for solder termination. The series is widely used in general-purpose electronic interconnect applications.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include parts with identical pitch and position counts but different mounting or plating options. Verify mechanical footprint compatibility before substitution. Check datasheets for variations in insulation resistance and operating temperature ranges. Ensure the replacement maintains the single-row centerline configuration.
