306-012-521-104

Edgeboard Connectors Overview

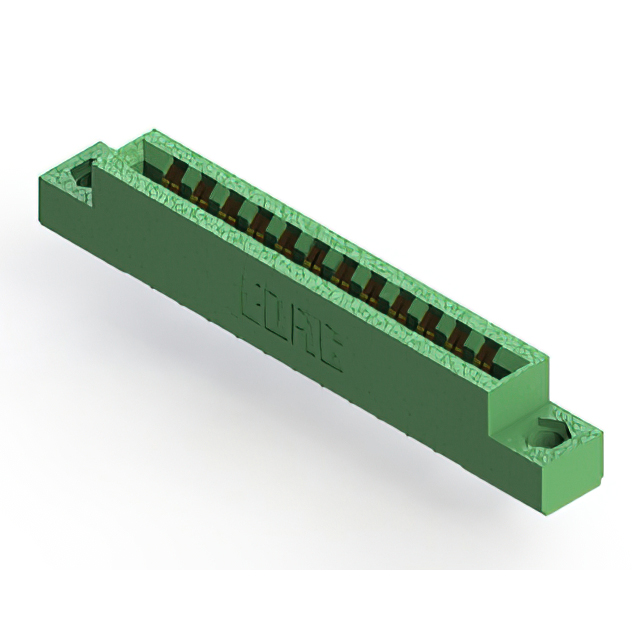

The EDAC Inc. 306-012-521-104 is a dual-edge female card edge connector designed for board-to-board or backplane interconnections. It features 24 positions arranged in two rows with a 0.156-inch (3.96mm) pitch. The connector utilizes gold-plated contacts and a green thermoplastic insulator, supporting a PCB thickness range of 0.054 to 0.070 inches. Rated for operation between -40°C and +105°C, it offers reliable signal transmission in industrial environments.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration ensures secure mating with double-sided card edges
• Gold-plated contacts provide corrosion resistance and stable electrical conductivity
• Thermoplastic insulation material supports high-temperature operational stability
• Panel mount installation style facilitates robust mechanical integration

Edgeboard Connectors Applications

• Industrial control system backplanes
• Telecommunications equipment interconnects
• Medical device internal circuit connections
• Automotive electronics modules

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm plating thickness and material variations. Ensure compatibility with target PCB stack-up dimensions before ordering. Confirm RoHS compliance status through current manufacturer declarations. Cross-reference lead times with authorized distributors as standard delivery periods may fluctuate based on production schedules.

Edgeboard Connectors Selection Notes

Select this component when a 3.96mm pitch dual-edge interface is required for moderate pin counts. Evaluate thermal requirements against the specified -40°C to +105°C operating range. Consider the panel mount form factor for applications requiring rigid structural support. Compare against alternative series if different pitch or single-edge configurations are needed.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 Series, which specializes in card edge connectors for various industrial and commercial applications. The series offers multiple position counts and pitch options to accommodate diverse design constraints. The 306-012-521-104 specifically addresses needs for 24-position dual-edge connectivity with standardized mounting characteristics.

Edgeboard Connectors Replacement Considerations

No direct public substitute part numbers are confirmed for this specific model. Alternative solutions require matching pitch, position count, and mounting style. Consult EDAC technical support for cross-reference recommendations if supply chain constraints exist.
