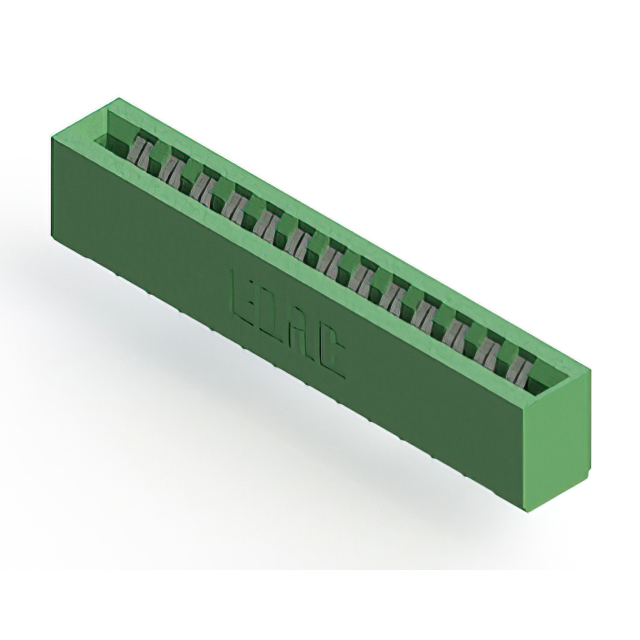

306-013-421-101 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 26POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 306-013-421-101
- Description：CONN EDGE DUAL FMALE 26POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：13
- Number of Positions：26
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Cantilever
- Color：Green
- Flange Feature：-
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 306-013-421-101
Edgeboard Connectors Overview
The EDAC Inc. 306-013-421-101 is a standard card edge connector receptacle featuring a single row of 13 positions with a 3.96 mm (0.156 inch) contact spacing. Designed for panel mount installation, it utilizes gold-plated copper alloy contacts and a thermoplastic polyester housing. The component supports a current rating of 5 A and operates within a temperature range of -40°C to +105°C. It accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch).
Edgeboard Connectors Feature Summary
- Accepts PCBs with a nominal thickness of 1.57 mm.
- Features low profile insulator body construction.
- Utilizes gold-plated contacts for reliable signal transmission.
Edgeboard Connectors Applications
- Industrial control systems requiring robust panel-mounted interconnects.
- Communication equipment utilizing standard card edge interfaces.
- Consumer electronics assemblies needing high-density vertical connections.
Edgeboard Connectors Procurement Notes
Verify the specific ordering suffix against official EDAC documentation to ensure correct pin count and termination style. Confirm that the required PCB thickness aligns with the 1.57 mm specification before procurement. Check regional distributor availability as stock levels may vary by location.
Edgeboard Connectors Selection Notes
Select this component when a single-row, panel-mount solution is required for 1.57 mm thick boards. Ensure the application environment falls within the -40°C to +105°C operating range. Verify that the 5 A current rating meets the electrical requirements of the target circuit design.
Edgeboard Connectors Part Context
This part belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and mounting styles. The 306-013 variant specifically provides a 13-position configuration in a vertical panel mount format, suitable for applications requiring fixed, high-reliability connections.
Edgeboard Connectors Replacement Considerations
Cross-reference compatible parts within the EDAC 306 series for alternative position counts. Verify mechanical dimensions and electrical ratings match before substituting with generic equivalents. Consult official datasheets for precise interface compatibility.
