306-013-500-101

Edgeboard Connectors Overview

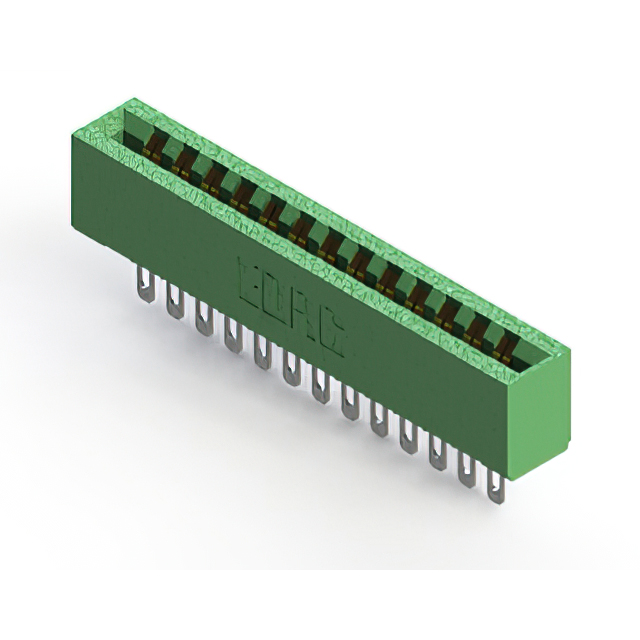

The EDAC Inc. 306-013-500-101 is a dual-edge female card edge connector designed for panel mounting. It features 26 positions arranged in two rows with a 0.156-inch (3.96mm) spacing. The contacts are made of copper alloy with gold plating and utilize a cantilever design. The insulator is constructed from thermoplastic polyester, rated for operation between -40°C and 105°C. It accepts printed circuit boards with thicknesses ranging from 0.054 to 0.070 inches.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration with cantilever contact type for secure board retention
• Gold-plated copper alloy contacts ensure reliable electrical performance
• Thermoplastic polyester insulator supports high-temperature operational environments

Edgeboard Connectors Applications

• Panel-mounted electronic assemblies requiring dual-edge connectivity
• Industrial control systems utilizing standard thickness PCBs
• Equipment operating within extended temperature ranges

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to confirm exact pin count, contact finish, and mounting style. Ensure the target PCB thickness falls within the specified acceptance range of 0.054 to 0.070 inches. Confirm RoHS compliance status if required by project specifications before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with 0.156-inch spacing is required for panel installation. Verify that the application environment remains within the -40°C to 105°C operating temperature range. Ensure the PCB design accommodates the cantilever contact geometry and the specified board thickness constraints for proper mechanical engagement.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of card edge connectors. The series offers various configurations including different position counts and mounting options. The 306-013-500-101 specifically provides a 26-position dual-edge interface suitable for applications requiring robust connections on standard thickness circuit boards.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 306 Series Ordering Guide for verified substitute part numbers. Cross-reference position counts, spacing, and mounting styles to ensure compatibility. Do not assume functional interchangeability without verifying technical specifications against the original component datasheet.
