306-013-521-103

Edgeboard Connectors Overview

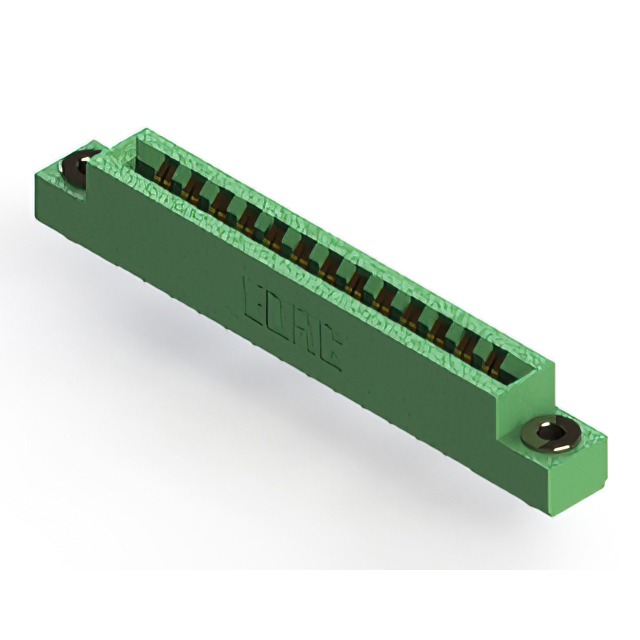

The EDAC Inc. 306-013-521-103 is a standard card edge connector from the 306 series, designed for vertical panel mount applications. It features a single centerline row with 13 positions and a contact spacing of 0.156 inches (3.96 mm). The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). Constructed with a green thermoplastic insulator body, it utilizes gold-plated contacts to ensure reliable signal transmission. The component supports through-hole installation and is rated for operation within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Vertical panel mount configuration for secure structural integration
• Single centerline row design accommodating standard PCB thickness
• Gold-plated contacts for enhanced conductivity and corrosion resistance

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Medical equipment needing reliable signal pathways
• Aerospace and defense electronic assemblies

Edgeboard Connectors Procurement Notes

Verify that the specific part number matches the required pin count and board thickness specifications before ordering. Confirm compliance with RoHS directives if environmental regulations apply to the project. Ensure that the vertical mounting style aligns with the mechanical constraints of the enclosure design. Cross-reference the datasheet for precise dimensional tolerances to guarantee proper fit during assembly.

Edgeboard Connectors Selection Notes

Select this connector when a low-profile, single-row interface is required for vertical panel mounting. The 0.156-inch pitch suits applications where space efficiency is balanced with high-density requirements. Consider the gold plating for environments demanding long-term reliability without oxidation concerns. Evaluate the thermal rating to ensure suitability for the operational environment of the target device.

Edgeboard Connectors Part Context

EDAC Inc. specializes in complex interconnect solutions for computing, medical, and aerospace sectors. The 306 series represents a line of card edge connectors known for durability and design flexibility. This specific model integrates into broader system architectures by providing stable connections between cables and printed circuit boards in demanding industrial settings.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
