306-013-521-112

Edgeboard Connectors Overview

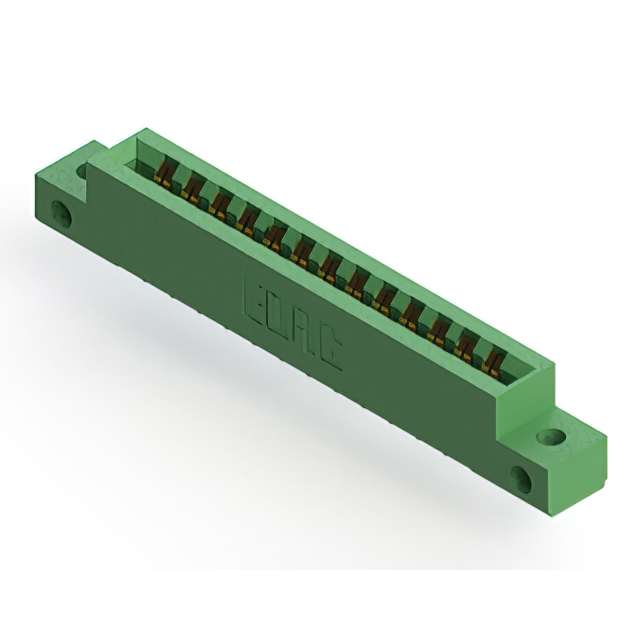

The EDAC Inc. 306-013-521-112 is a dual female card edge connector featuring 13 positions with a 0.156-inch (3.96mm) pitch. It utilizes a single centerline row configuration and accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). The contacts are gold-plated copper alloy, providing reliable electrical performance. Designed for panel mount installation, this component operates within a temperature range suitable for industrial applications.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure board insertion
• Single centerline row design simplifies routing and assembly
• Gold-plated copper alloy contacts ensure corrosion resistance
• Low profile insulator body reduces overall package height

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Medical equipment needing reliable signal transmission
• Aerospace avionics modules demanding high durability
• Computing and storage hardware interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm contact plating thickness and insulator color variants. Ensure compatibility with the target PCB thickness of 0.062 inches before procurement. Confirm lead times as manufacturing schedules may vary. Cross-reference the datasheet for precise mounting hole dimensions to guarantee mechanical fit within the enclosure design constraints.

Edgeboard Connectors Selection Notes

Select this model when a single row of contacts is sufficient for the application's signal requirements. The 0.156-inch pitch offers wider spacing compared to finer pitches, aiding in manual assembly or rework. Consider the panel mount style if space constraints require a fixed orientation. Evaluate the current rating against the load requirements to ensure safe operation under all expected conditions.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 series, which specializes in standard card edge connectors. The series provides various options for contact rows, mounting styles, and termination methods. The 306 series is widely used in computing, storage, and industrial sectors where reliable board-to-panel connections are critical for system integrity and performance stability.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 306 series parts with matching pin counts and pitch, such as 306-013-521-102. Verify that alternative models maintain the same 0.156-inch pitch and 0.062-inch board thickness acceptance. Check for identical mounting configurations to avoid redesigning the panel cutouts or chassis.
