306-014-500-107

Edgeboard Connectors Overview

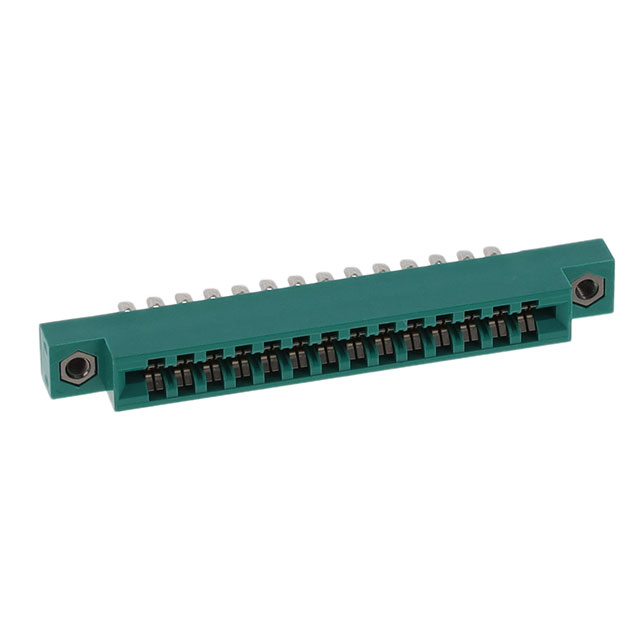

The EDAC Inc. 306-014-500-107 is a standard card edge connector from the 306 series, designed for vertical panel mounting applications. It features a single row with 14 positions and a contact spacing of 3.96 mm (0.156 inches). The connector accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inches). Constructed with copper alloy contacts plated with gold and a thermoplastic insulator body, it supports a current rating of 5 A and offers an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Accepts PCBs with a nominal thickness of 1.57 mm
• Features low profile insulator body construction
• Utilizes gold-plated copper alloy contacts for reliable connection

Edgeboard Connectors Applications

• Vertical panel mount interconnect systems
• Single-row card edge board connections
• Industrial control module interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm the exact termination style and plating specifications required for the application. Ensure compatibility with the target PCB thickness of 1.57 mm and verify that the single-row configuration meets the signal count requirements. Cross-reference the manufacturer datasheet for precise mechanical dimensions and mounting hole patterns before finalizing procurement decisions.

Edgeboard Connectors Selection Notes

Select this component when a vertical panel mount solution is required for single-sided card edge boards. The 3.96 mm pitch accommodates standard board layouts while the 5 A rating suits moderate power applications. Consider the thermoplastic housing material for general environmental protection. Verify that the lug termination style aligns with the assembly process and mechanical constraints of the host enclosure design.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of standard card edge connectors, which are characterized by their robust construction and versatile mounting options. The series typically includes various position counts and termination styles to support diverse electronic packaging needs. The 306 series is widely used in industrial and commercial electronics where reliable high-density interconnection is essential.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include parts with identical pitch and position counts but different termination or mounting variations. Verify mechanical fit and electrical ratings before swapping components.
