306-014-520-104

Edgeboard Connectors Overview

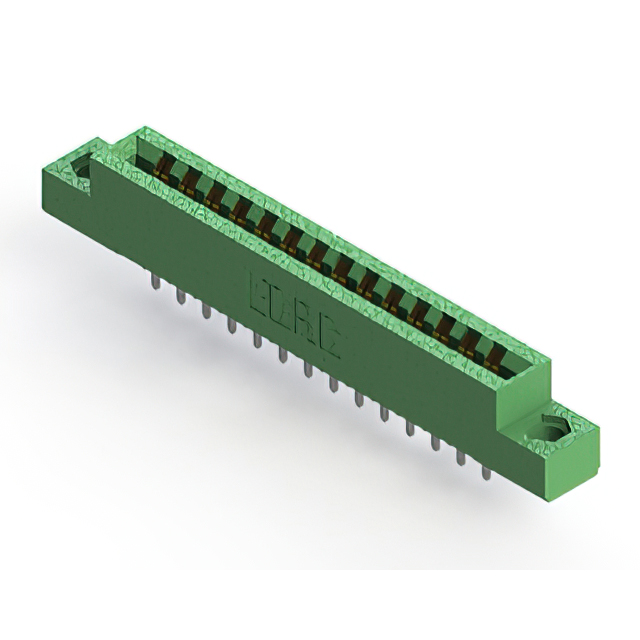

The EDAC Inc. 306-014-520-104 is a standard card edge connector receptacle featuring 14 positions with a 3.96 mm pitch. Designed for vertical panel mount installation, it accommodates a nominal PCB thickness of 1.57 mm. The contacts are gold-plated copper alloy, rated for 5 A current, and utilize solder pin termination. The housing is constructed from thermoplastic polyester.

Edgeboard Connectors Feature Summary

• Accepts printed circuit boards with a nominal thickness of 1.57 mm
• Features a low profile insulator body for compact integration
• Utilizes gold-plated copper alloy contacts for reliable conductivity

Edgeboard Connectors Applications

• Panel-mounted electronic interconnect systems
• Single-sided card edge board connections
• Vertical mounting applications requiring robust signal paths

Edgeboard Connectors Procurement Notes

Verify the specific manufacturer part number against official EDAC documentation to confirm compatibility with your design requirements. Ensure that the 3.96 mm pitch and 1.57 mm board thickness align with your PCB specifications before procurement. Cross-reference the datasheet for precise mechanical dimensions and electrical ratings to avoid integration errors.

Edgeboard Connectors Selection Notes

Select this component when a single-row, vertical card edge connector is required for panels. It is suitable for designs needing a 3.96 mm contact spacing and support for 1.57 mm thick boards. Consider the 5 A current rating and gold plating for applications demanding stable electrical performance in a low-profile form factor.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 series of standard card edge connectors. The series offers various design options to tailor interconnect requirements. The 306 series typically includes receptacles and headers with different position counts and termination styles, providing flexibility for diverse electronic assembly needs.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for verified alternatives. Generic equivalents may not match the specific 3.96 mm pitch or 1.57 mm board thickness tolerance. Verify mechanical fit and electrical ratings before considering any substitute parts.
