306-014-521-102

Edgeboard Connectors Overview

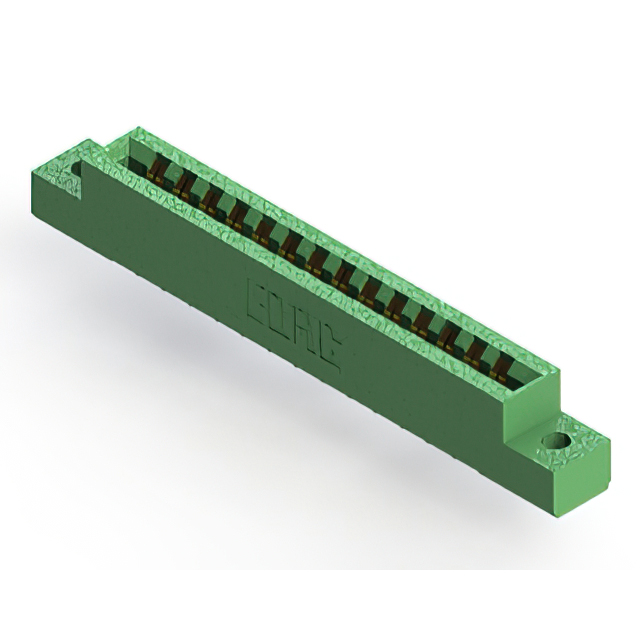

The EDAC Inc. 306-014-521-102 is a standard card edge connector from the 306 series, designed for single-side board insertion. It features 14 positions with a contact spacing of 0.156 inches (3.96 mm). The connector utilizes cantilever contacts made of copper alloy, finished with gold plating at a thickness of 10.0 µin (0.25 µm). It supports a maximum board thickness of 1.57 mm and employs a panel mount installation style. The housing is constructed from green thermoplastic material, suitable for reliable signal transmission in electronic assemblies.

Edgeboard Connectors Feature Summary

• Single-edge design accommodating boards up to 1.57 mm thick
• Cantilever contact type ensuring secure board retention
• Gold-plated copper alloy contacts for corrosion resistance
• Panel mount configuration for stable structural integration

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• Test and measurement instrument modules
• Embedded computing hardware interfaces

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against the manufacturer's current datasheet to confirm exact pin count, termination style, and plating specifications. Ensure compatibility with the target PCB edge thickness and mounting hole dimensions before ordering. Cross-reference the part number with official EDAC documentation to validate availability status and lead times through authorized distributors.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 14-position interface with 3.96 mm spacing is required. Confirm that the application environment does not exceed the thermal ratings of the polyphenylene sulfide or polyester housing. Validate that the cantilever contact force meets the mechanical requirements for the mating card edge. Ensure panel cutout dimensions align with the connector's flange specifications.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of card edge connectors, which are characterized by their robust construction and suitability for high-reliability applications. The series offers various position counts and spacing options, providing flexibility for different board densities. The 306 series is widely used in industries requiring durable, plug-and-play connectivity solutions for modular electronic systems.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include parts with identical pin counts and spacing but different termination or housing colors. Verify mechanical fit and electrical ratings before substituting. Consult EDAC's cross-reference guides for approved alternatives that maintain the same form factor and performance characteristics.

Edgeboard Connectors FAQ

What is the contact spacing for the 306-014-521-102?

The contact spacing is 0.156 inches (3.96 mm).

Is this connector compatible with double-sided cards?

No, this is a single-side card edge connector designed for one-sided board insertion.

What material is used for the contacts?

The contacts are made of copper alloy with a gold plating finish.
