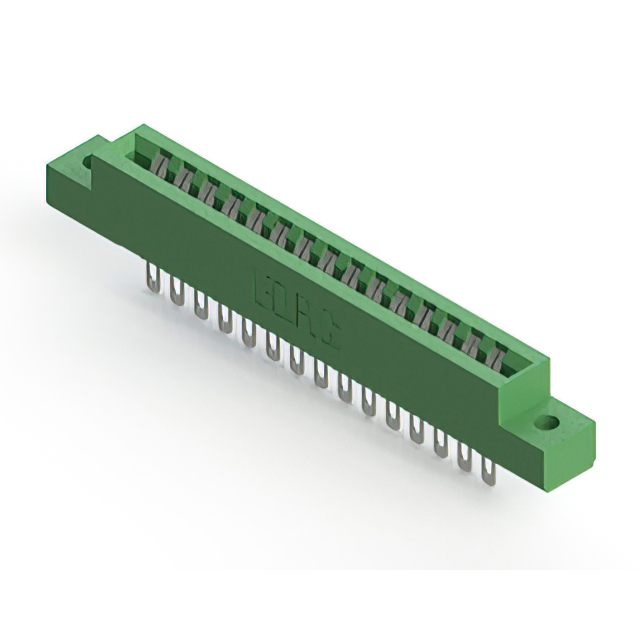

306-015-400-102 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 30POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 306-015-400-102
- Description：CONN EDGE DUAL FMALE 30POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：15
- Number of Positions：30
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 306-015-400-102
Edgeboard Connectors Overview
The EDAC Inc. 306-015-400-102 is a standard card edge connector receptacle from the 306 series. It features 15 positions with a 3.96 mm pitch and supports a board thickness of 1.57 mm. The component utilizes copper alloy contacts with gold plating, rated for 5 A current. Constructed with a thermoplastic housing, it offers an insulation resistance of 5 GOhms. Designed for vertical panel mount installation, it operates within a temperature range of -40 C to +105 C.
Edgeboard Connectors Feature Summary
- Vertical panel mount receptacle design
- Gold-plated copper alloy contacts
- Thermoplastic insulating housing
Edgeboard Connectors Applications
- Industrial control systems
- Telecommunications equipment
- Test and measurement devices
Edgeboard Connectors Procurement Notes
Verify the specific ordering suffix against the official EDAC datasheet to ensure compatibility with required board thicknesses and contact configurations. Confirm RoHS compliance status and moisture sensitivity levels prior to procurement. Cross-reference the manufacturer part number with distributor catalogs to validate current availability and lead times.
Edgeboard Connectors Selection Notes
Select this component when a single-row, vertical card edge interface is required for panel mounting. Ensure the mating card edge PCB thickness aligns with the specified 1.57 mm requirement. Consider the 3.96 mm pitch and 5 A current rating to match system electrical and mechanical constraints.
Edgeboard Connectors Part Context
This part belongs to the EDAC 306 series of standard card edge connectors. The series provides reliable interconnection solutions for various electronic applications. The 306-015-400-102 variant specifically addresses needs for moderate pin counts with robust thermal and electrical performance characteristics.
Edgeboard Connectors Replacement Considerations
Consult the official EDAC replacement guide for direct substitutes. Verify that alternative parts maintain identical pitch, row count, and mounting style specifications.
