306-015-520-112

Edgeboard Connectors Overview

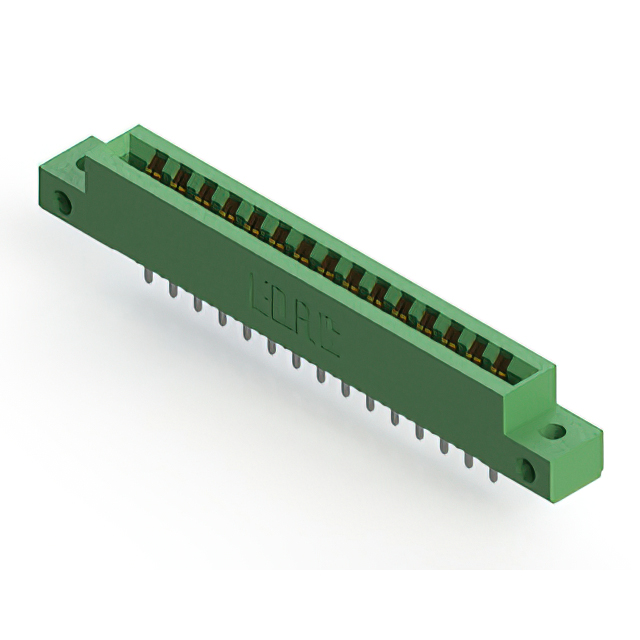

The EDAC Inc. 306-015-520-112 is a standard card edge connector from the 306 series, designed for through-hole mounting. It features a dual-edge female configuration with 30 positions and a contact spacing of 0.156 inches (3.96 mm). The connector utilizes gold-plated copper alloy contacts to ensure reliable signal transmission. It is engineered to accommodate board thicknesses within the range of 0.051 to 0.071 inches (1.30 to 1.80 mm). The unit operates effectively within a temperature range of -40°C to +105°C, providing robust performance for industrial applications requiring secure edgeboard connections.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration for secure board insertion
• Gold-plated contacts for enhanced conductivity and corrosion resistance
• Through-hole termination for stable mechanical attachment
• Thermoplastic polyester housing for durability

Edgeboard Connectors Applications

• Industrial control systems
• Telecommunications equipment
• Test and measurement instruments

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm pin count, plating specifications, and mounting style. Ensure compatibility with the target PCB thickness and row configuration before procurement. Cross-reference the full part number with authorized distributors to confirm current availability and compliance with regional regulatory standards such as RoHS.

Edgeboard Connectors Selection Notes

Select this component when a high-density connection with 30 positions is required on a dual-edge card. The 0.156-inch pitch offers a balance between density and ease of assembly compared to finer pitches. Consider the operating temperature range and material composition to ensure suitability for the intended environmental conditions and mechanical stress levels in the final assembly.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 306 series, which specializes in standard card edge connectors with a 0.156-inch contact spacing. The series provides various position counts and mounting options to support diverse electronic interconnection needs. The 306-015-520-112 variant specifically addresses requirements for dual-edge female connections with gold plating, fitting into the broader portfolio of reliable interconnect solutions offered by the manufacturer.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC cross-reference guide for verified substitute part numbers. Ensure any replacement maintains identical electrical ratings, mechanical dimensions, and mounting characteristics to preserve system integrity.
