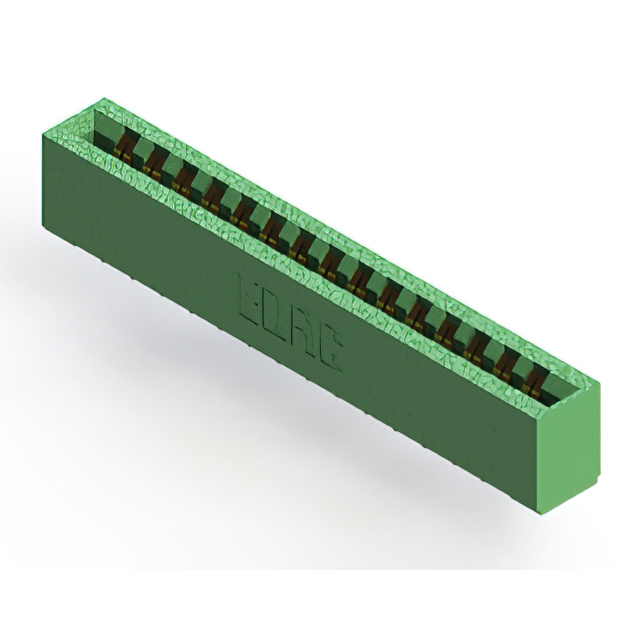

306-015-521-101 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 30POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 306-015-521-101
- Description：CONN EDGE DUAL FMALE 30POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：15
- Number of Positions：30
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：-
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 306-015-521-101
Edgeboard Connectors Overview
The EDAC Inc. 306-015-521-101 is a single-sided card edge connector designed for through-hole mounting. It features 15 contacts with a 0.156-inch (3.96mm) spacing, utilizing gold-plated brass terminals and a green thermoplastic insulator body. The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). This component supports low-profile applications and is RoHS compliant.
Edgeboard Connectors Feature Summary
- Single centerline row configuration
- Gold-plated contact surfaces
- Low profile insulator body design
Edgeboard Connectors Applications
- Medical interconnect solutions
- Ambulance equipment connections
- Ventilator system interfaces
- CPAP machine connections
Edgeboard Connectors Procurement Notes
Verify the specific part number against official manufacturer documentation to confirm compatibility with your PCB layout requirements. Ensure that the board thickness matches the specified 0.062-inch nominal dimension for proper engagement. Check for any updated environmental compliance certifications such as RoHS status before finalizing procurement orders.
Edgeboard Connectors Selection Notes
Select this connector when a single-sided interface with 15 positions is required. Consider the 0.156-inch pitch for trace routing constraints. Evaluate the low-profile height if vertical space is limited within the enclosure design. Confirm that the through-hole mounting method aligns with the assembly process capabilities.
Edgeboard Connectors Part Context
This component belongs to the EDAC 306 series of card edge connectors. The series offers various configurations including single and dual-sided options with different contact counts. These connectors are engineered for reliable signal transmission in compact electronic assemblies requiring robust mechanical retention.
Edgeboard Connectors Replacement Considerations
Consult official cross-reference lists for direct substitutes. Verify pin count, pitch, and mounting style match exactly. Ensure insulation material and termination type are compatible with existing manufacturing processes.
