306-016-520-112

Edgeboard Connectors Overview

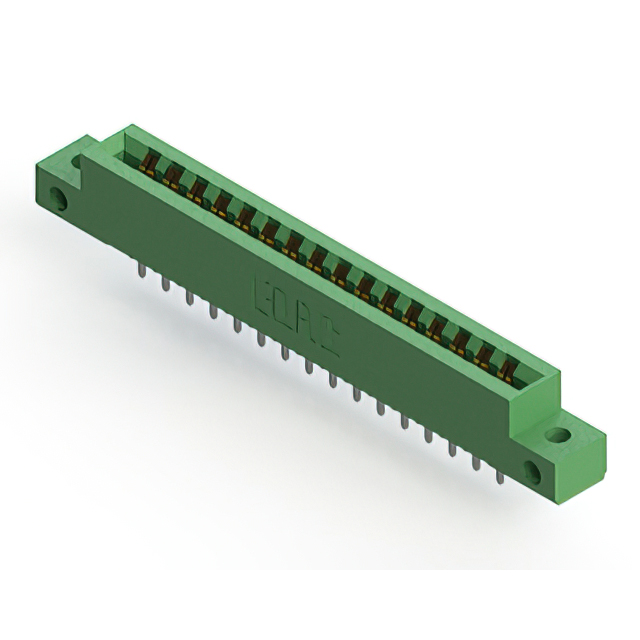

The EDAC Inc. 306-016-520-112 is a standard card edge connector from the 306 series, designed for vertical panel mounting applications. It features a dual-edge female configuration with 32 positions and a contact spacing of 3.96 mm (0.156 inches). The connector accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inches). Constructed with copper alloy contacts that are gold-plated, it ensures reliable signal transmission. The housing is made of green thermoplastic material, providing insulation resistance of 5 GOhms. Rated for 5 A current, this component supports robust electrical connections in industrial environments.

Edgeboard Connectors Feature Summary

• Dual-edge female design accommodates double-sided PCB traces for increased I/O density
• Vertical panel mount style provides secure structural integration into chassis systems
• Gold-plated copper alloy contacts ensure corrosion resistance and stable conductivity
• Low-profile insulator body constructed from durable thermoplastic material

Edgeboard Connectors Applications

• Industrial control system interface modules
• Telecommunications equipment backplanes
• Medical device internal board interconnects
• Consumer electronics mainboard connections

Edgeboard Connectors Procurement Notes

Verify the specific part number against official manufacturer documentation to confirm compatibility with your PCB stack-up and mechanical requirements. Ensure that the ordering suffix matches the exact configuration needed, as variations may exist within the product family. Cross-reference the datasheet for precise dimensional tolerances and mating force specifications before finalizing procurement decisions.

Edgeboard Connectors Selection Notes

Select this connector when a dual-edge female interface is required for 32-position applications with a 3.96 mm pitch. It is suitable for designs utilizing 1.57 mm thick PCBs and requiring vertical panel mounting. Consider the 5 A current rating and gold plating for environments demanding high reliability and corrosion resistance. Verify that the thermoplastic housing material meets the thermal and chemical resistance needs of the target application.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 series of standard card edge connectors, which are widely used in various electronic assemblies. The series offers multiple position counts and configurations to suit different connectivity needs. EDAC, now part of Northern Technologies, has a long history of producing high-quality interconnect solutions since 1966, serving industries such as communications, medical, and industrial sectors.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
