306-016-521-108

Edgeboard Connectors Overview

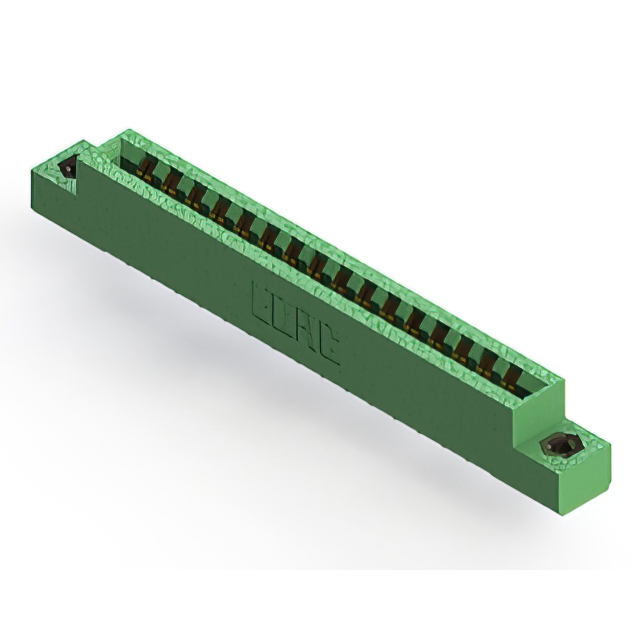

The EDAC Inc. 306-016-521-108 is a dual-edge female card edge connector designed for through-hole mounting. It features 32 positions with a contact spacing of 0.156 inches (3.96mm). The connector utilizes gold-plated contacts and a green thermoplastic insulator body. It accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). This component belongs to the 306 series, offering a low-profile design suitable for various electronic applications requiring reliable board-to-board or board-to-backplane connections.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration for secure card insertion
• Gold-plated phosphor bronze contacts ensure reliable conductivity
• Low-profile insulator body reduces overall assembly height
• Through-hole termination method provides robust mechanical stability

Edgeboard Connectors Applications

• Industrial control systems
• Telecommunications equipment
• Consumer electronics assemblies
• Medical device interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact pin count, plating thickness, and flange specifications. Ensure compatibility with the target PCB thickness range of 0.062 inches. Confirm RoHS compliance status if required by project regulations. Cross-reference the part number with authorized distributors to avoid counterfeit components. Check for any recent updates in the product lifecycle status before finalizing procurement plans.

Edgeboard Connectors Selection Notes

Select this connector when a dual-edge interface with 0.156-inch spacing is required. Consider the 32-position count for signal routing needs. Evaluate the low-profile form factor against spatial constraints within the enclosure. Verify that the through-hole mounting style aligns with the PCB manufacturing capabilities. Ensure the operating temperature range meets the environmental requirements of the intended application scenario.

Edgeboard Connectors Part Context

This component is part of EDAC's extensive portfolio of interconnect solutions, established since 1966. The 306 series specifically targets card edge applications, providing standardized dimensions and reliable performance across various industries. EDAC offers comprehensive support including CAD models and technical documentation to facilitate integration into complex electronic designs and system architectures.

Edgeboard Connectors Replacement Considerations

Direct substitutes may include other 306-series variants with different pin counts or colors, such as the 306-032-521-108. Verify mechanical footprint and electrical specifications before substitution. No alternative part numbers are explicitly confirmed in public documentation for direct replacement without engineering review.
