306-017-520-107

Edgeboard Connectors Overview

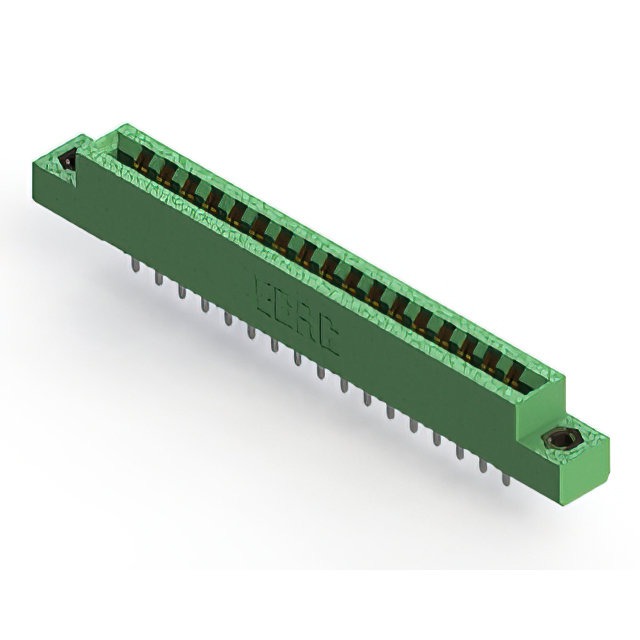

The EDAC Inc. 306-017-520-107 is a standard card edge connector from the 306 series, designed for panel mount applications. It features a dual-edge female configuration with 17 positions and a contact spacing of 3.96 mm (0.156 inches). The contacts are made of copper alloy with gold plating to ensure reliable signal transmission. Rated for 5 A current, it supports PCB thicknesses between 1.37 mm and 1.78 mm. The housing is constructed from green thermoplastic, providing insulation resistance of 5 GOhms. Operating temperatures range from -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female contact design for secure board insertion
• Gold-plated copper alloy contacts for corrosion resistance
• Panel mount vertical installation style
• Thermoplastic housing with high insulation resistance

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Communication equipment backplanes
• Medical device circuit boards
• Energy management hardware

Edgeboard Connectors Procurement Notes

Verify the specific pin count and contact spacing against your PCB layout requirements before ordering. Confirm that the housing material and color meet your assembly standards. Check RoHS compliance status if required by your regulatory framework. Ensure the panel mount style aligns with your chassis design constraints. Cross-reference the manufacturer part number with distributor catalogs to confirm availability in your region.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge connection is necessary for higher density or redundancy compared to single-edge variants. The 3.96 mm pitch accommodates standard board thicknesses within the specified range. Consider the 5 A current rating for power distribution needs. The vertical panel mount orientation simplifies integration into enclosed systems. Verify compatibility with mating card edge guides if mechanical stability is critical.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 306 series, which offers various configurations for card edge applications. The series provides options for different row counts, contact spacings, and mounting styles. The 306-017-520-107 specifically addresses needs for 17-position dual-edge connections. It complements other parts in the family that offer single-row or different pitch alternatives.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 306 series connectors with identical 17-position dual-edge specifications. Verify that any replacement maintains the same 3.96 mm pitch and panel mount orientation. Ensure the current rating and temperature range match the original design requirements. Check for equivalent gold plating thickness on contacts.
