306-019-400-168

Edgeboard Connectors Overview

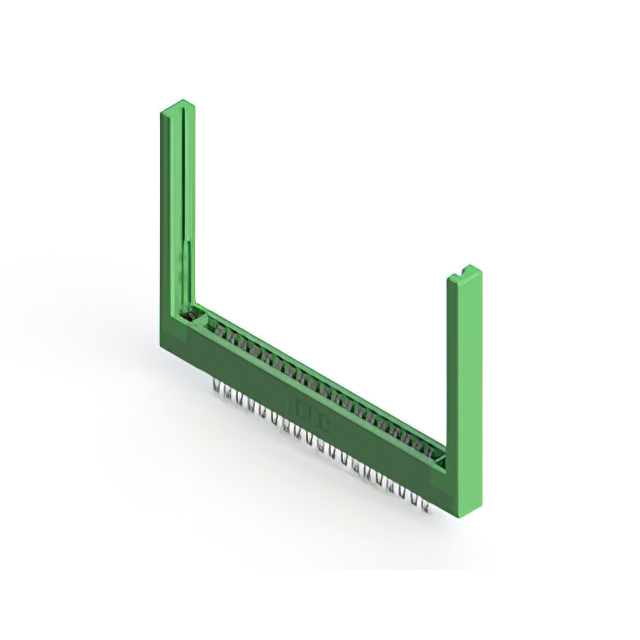

The EDAC Inc. 306-019-400-168 is a dual-edge female card edge connector from the 306 Series. It features 38 positions with a 0.156-inch (3.96mm) contact spacing and a 0.140-inch (3.56mm) row spacing. The connector utilizes tin-plated brass contacts and a green polyamide insulator. Designed for board edge mounting, it supports solder termination and accommodates card thicknesses ranging from 0.031 to 0.062 inches.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration for non-specified card edges
• Tin-plated brass contacts ensure reliable signal transmission
• Green polyamide insulator provides structural stability
• Board edge mounting facilitates secure PCB integration

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment board connections
• Consumer electronics internal module interfaces
• Automotive electronic control unit assemblies

Edgeboard Connectors Procurement Notes

Verify that the specific part number matches the required 38-position dual-edge specification. Confirm RoHS3 compliance status through official manufacturer documentation before procurement. Ensure the supplier provides genuine EDAC Inc. components to guarantee performance reliability and adherence to industry standards.

Edgeboard Connectors Selection Notes

Select this component when a 0.156-inch pitch dual-edge connector is required. Consider the tin plating for general-purpose applications rather than high-corrosion environments. Evaluate the mechanical fit within the enclosure constraints defined by the connector height and mounting style.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 Series, which specializes in standard card edge connectors. The series offers various position counts and contact spacings to accommodate diverse board design requirements. The 306-019-400-168 represents a specific configuration within this established product line.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 306 Series parts with identical pin counts and spacing. Cross-reference with equivalent models from other manufacturers only if electrical and mechanical parameters match precisely.
