306-019-520-102

Edgeboard Connectors Overview

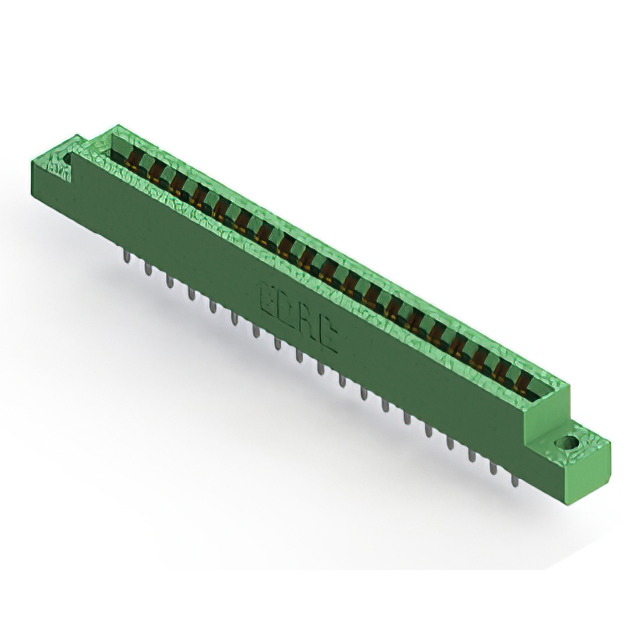

The EDAC Inc. model 306-019-520-102 is a standard card edge connector featuring 38 positions with a 3.96 mm pitch. It utilizes gold-plated copper alloy contacts and a thermoplastic housing, rated for 5 A current and 5 GOhms insulation resistance. Designed for vertical panel mounting, it accommodates a board thickness of 1.57 mm.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration
• Gold-plated copper alloy terminals
• Vertical panel mount installation style

Edgeboard Connectors Applications

• Medical interconnect solutions
• Ambulance equipment connections
• Ventilator system interfaces

Edgeboard Connectors Procurement Notes

Verify the specific position count against official datasheets, as distributor listings may vary between 33 and 38 positions for this series. Confirm that the green housing variant matches project requirements. Ensure compatibility with the specified 1.57 mm board thickness before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a vertical panel-mount solution is required for dual-edge cards. The 3.96 mm pitch and 5 A rating suit general industrial applications. Verify that the thermoplastic housing material meets environmental constraints for the intended deployment scenario.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series provides various position counts and mounting options for communication, consumer electronics, medical, energy, and industrial sectors. It represents a standardized interconnect solution within the manufacturer's broader portfolio.

Edgeboard Connectors Replacement Considerations

Consult official substitution lists for exact pin-compatible alternatives. Generic equivalents may differ in contact plating or housing material specifications.
