306-019-520-107

Edgeboard Connectors Overview

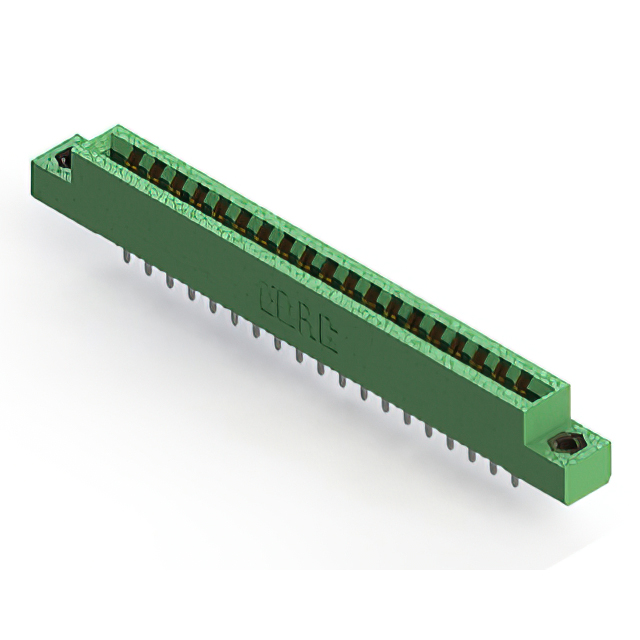

The EDAC Inc. 306-019-520-107 is a standard card edge connector from the 306 series, designed for panel mount applications. It features a dual female configuration with 19 positions arranged in a single row. The connector utilizes a 3.96 mm (0.156 inch) contact spacing and accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). Constructed with copper alloy contacts plated with gold, it ensures reliable electrical performance within an operating temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Accepts PCBs with a nominal thickness of 0.062 inches
• Features low profile insulator body construction
• Utilizes gold-plated copper alloy contacts for conductivity

Edgeboard Connectors Applications

• Panel-mounted electronic assemblies requiring card edge interface
• Industrial control systems utilizing 0.062-inch thick circuit boards
• Equipment needing vertical dual-edge female connections

Edgeboard Connectors Procurement Notes

Verify the specific pin count and contact configuration against the official datasheet before procurement. Confirm that the required PCB thickness aligns with the 0.062-inch specification. Ensure the panel mounting style and threaded insert requirements match the design constraints. Cross-reference the RoHS compliance status if environmental regulations apply to the end product.

Edgeboard Connectors Selection Notes

Select this component when a vertical, panel-mount card edge connector is required for 0.062-inch thick PCBs. The 3.96 mm pitch suits applications where larger spacing reduces crosstalk risks. Consider the dual female gender for mating with male card edges. Verify that the thermoplastic polyester housing meets thermal and mechanical requirements for the intended environment.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and configurations for board-to-board or backplane connections. The 306-019-520-107 specifically provides a 19-position solution with dual-edge female contacts, suitable for robust industrial interconnect needs.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 306 Series Ordering Guide for direct substitutes with different position counts or contact spacings. Verify compatibility with existing PCB layouts and panel cutouts when selecting alternative parts.
