306-020-400-103

Edgeboard Connectors Overview

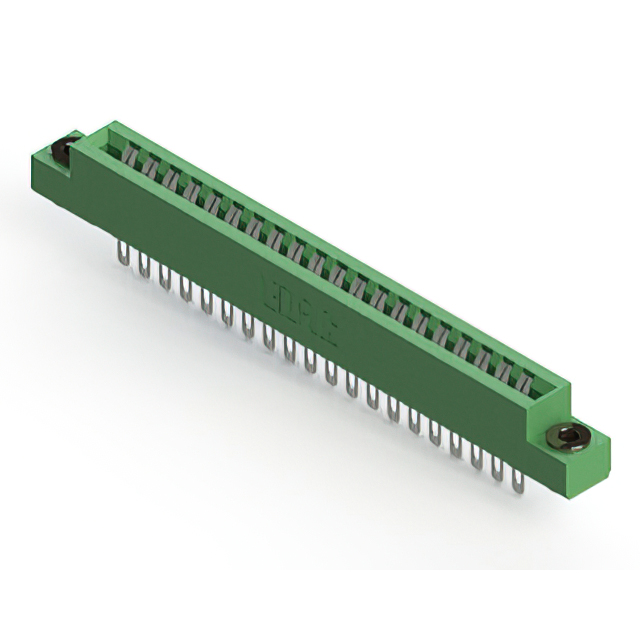

The EDAC Inc. 306-020-400-103 is a standard card edge connector featuring a dual female configuration with 40 positions. It utilizes a 0.156-inch (3.96mm) pitch and is designed for vertical board mounting. The contacts are tin-plated, and the insulator body is green. This component supports single-row card edge interfaces and is suitable for applications requiring reliable signal transmission in industrial and computing environments.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure card insertion
• Vertical mounting orientation for PCB integration
• Tin-plated contacts for corrosion resistance
• Green insulator body with standard dimensional profile

Edgeboard Connectors Applications

• Industrial control system interconnects
• Computing and storage device modules
• Communication network hardware assemblies

Edgeboard Connectors Procurement Notes

Verify that the specific part number matches the required 40-position dual female specification. Confirm that tin plating meets the application's conductivity and durability requirements. Ensure the vertical mounting style aligns with the PCB layout constraints. Check for any RoHS compliance documentation if environmental regulations apply to the final assembly.

Edgeboard Connectors Selection Notes

Select this connector when a dual-sided female interface is required for a 40-pin card edge module. The 0.156-inch pitch dictates the compatible card thickness and trace spacing. Tin plating offers a cost-effective solution for general-purpose connections where gold plating is not strictly necessary. Consider the vertical form factor for space-constrained board designs.

Edgeboard Connectors Part Context

EDAC Inc. specializes in card edge and rack & panel connectors, established in 1966. The 306 series represents their standard line of interconnect solutions. These components serve global OEMs in computing, medical, aerospace, and industrial sectors. The company emphasizes quality assurance and logistics efficiency in its manufacturing processes.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users should verify compatibility with existing card edge modules before attempting substitution. Alternative connectors must match the 40-position count, 0.156-inch pitch, and dual female configuration.
