306-020-420-168

Edgeboard Connectors Overview

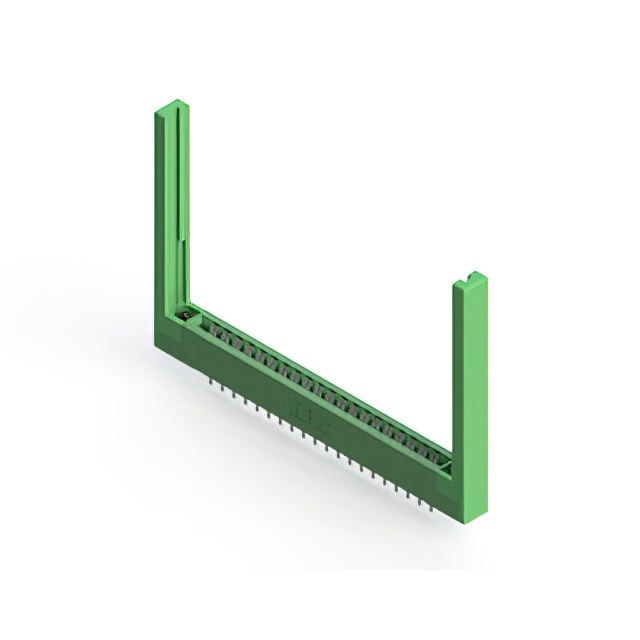

The EDAC Inc. 306-020-420-168 is a dual female card edge connector featuring 40 positions with a 0.156-inch (3.96mm) contact spacing. It utilizes a single centerline row design and accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). The component employs a low-profile insulator body and is designed for panel mount installation. This connector supports vertical orientation and provides reliable electrical interconnection for standard card edge applications.

Edgeboard Connectors Feature Summary

• Dual female configuration with 40 positions
• Accepts 0.062 inch nominal PCB thickness
• Low profile insulator body design

Edgeboard Connectors Applications

• Standard card edge interconnections
• Panel mounted electronic assemblies
• Vertical board insertion systems

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to ensure compatibility with required mounting hardware and termination styles. Confirm that the target application accommodates the 0.156-inch pitch and 0.062-inch board thickness specifications. Check manufacturer documentation for any updates regarding material composition or environmental compliance status before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this model when a dual female connector with 40 positions is required for vertical panel mounting. Ensure the design supports the specified 0.156-inch spacing and accommodates the standard 0.062-inch PCB thickness. Verify that the low-profile body fits within the available enclosure constraints and that the mounting style aligns with the chassis requirements.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 series, which offers various contact spacings and termination options. The 306 series is designed for robust card edge connections in industrial and commercial applications. Variants within this series differ by position count, pitch, and mounting features, allowing for flexible integration into diverse electronic systems requiring reliable signal transmission.

Edgeboard Connectors Replacement Considerations

Consult official cross-reference guides for direct substitutes. Verify that alternative parts match the 40-position count, 0.156-inch pitch, and 0.062-inch board thickness. Ensure mechanical fit and electrical characteristics are identical to prevent assembly issues.
