Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 40POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：20
- Number of Positions：40
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount, Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

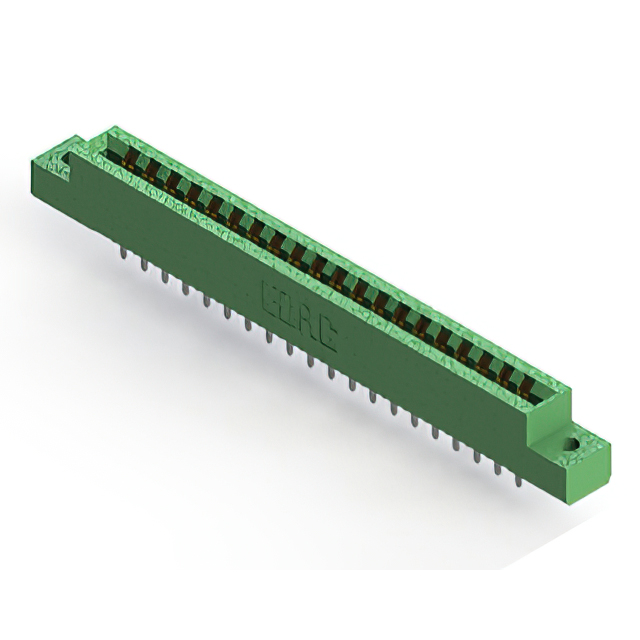

The EDAC Inc. 306-020-520-102 is a standard card edge connector from the 306 series, designed for vertical panel mounting. It features a dual female configuration with 40 positions and a 0.156-inch (3.96 mm) pitch. The contacts are gold-plated copper alloy, rated for 5 A current, while the thermoplastic housing provides insulation resistance of 5 Gohms. It supports a board thickness of 1.57 mm and operates within a temperature range of -40°C to 105°C.
Feature Summary
- Dual female contact configuration ensures reliable mating with card edge boards.
- Vertical panel mount style facilitates secure installation in chassis applications.
- Gold-plated copper alloy contacts offer corrosion resistance and stable conductivity.
Applications
- Medical interconnect solutions such as ventilators and CPAP machines
- Ambulance medical equipment connections
- General industrial panel-mounted circuit interfaces
Procurement Notes
Verify RoHS3 compliance status before integration into regulated assemblies. Confirm that the 40-position dual female variant matches the target PCB edge design. Ensure the 0.156-inch pitch aligns with the host board specifications. Check regional availability as distribution may vary by location.
Selection Notes
Select this component when a vertical, panel-mount interface is required for high-reliability connections. The 40-position count suits moderate-density signal routing. Verify that the 1.57 mm board thickness tolerance accommodates the target PCB stack-up. Consider the operating temperature range for environmental suitability.
Part Context
This part belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and mounting styles. The 306-020-520-102 specifically denotes the 40-position dual female vertical variant. It is distinct from single-row or flanged versions within the same family.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Cross-reference with other EDAC 306 series variants only if mechanical and electrical parameters match exactly.
FAQ
What is the contact material for this connector?
The contacts are made of copper alloy with gold plating.
Does this connector support vertical panel mounting?
Yes, the 306-020-520-102 is designed for vertical panel mount installation.
