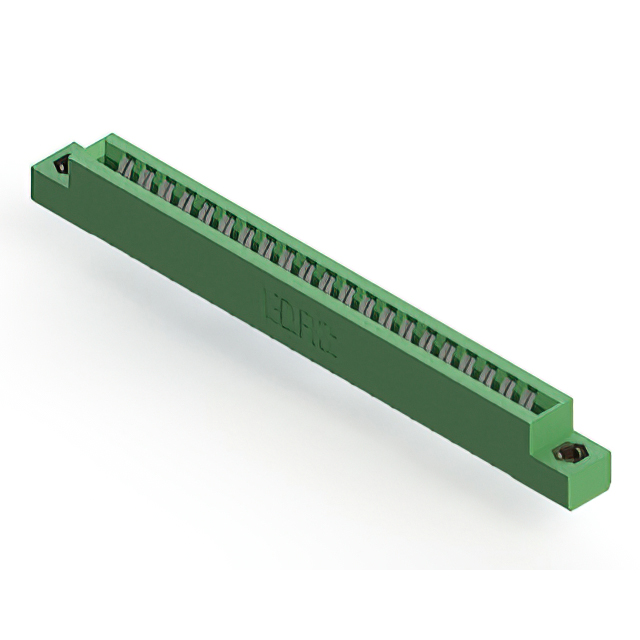

306-021-421-107

$12.24

Description：CONN EDGE DUAL FMALE 42POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:9883da4c6e06 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 42POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：21
Number of Positions：42
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Tin
Contact Finish Thickness：-
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, M3
Operating Temperature：-40°C ~ 105°C

Download product information

306-021-421-107

Overview

The EDAC Inc. 306-021-421-107 is a standard card edge connector from the 306 series, designed for panel mount applications with a vertical orientation. It features a dual female configuration with 42 positions and a contact spacing of 0.156 inches (3.96 mm). The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). Constructed with copper alloy contacts and a thermoplastic polyester insulator, it supports a current rating of 5 A and operates within a temperature range of -40°C to 105°C.

Feature Summary

Dual female contact configuration for secure board retention
Low profile insulator body design for space-constrained installations
Accepts nominal 0.062 inch thick printed circuit boards

Applications

Panel-mounted electronic assemblies requiring vertical interconnection
Industrial control systems utilizing standard card edge interfaces
Test and measurement equipment needing reliable signal routing

Procurement Notes

Verify component authenticity through authorized EDAC distributors or verified supply chain channels. Confirm that the received part matches the specific 306-021-421-107 designation, including packaging integrity and RoHS compliance documentation. Ensure storage conditions maintain material stability prior to installation.

Selection Notes

Select this model when a dual-row, 42-position interface is required for vertical panel mounting. The 3.96 mm pitch accommodates standard board thicknesses. Verify compatibility with mating card edge dimensions and ensure the 5 A current rating meets system electrical requirements before integration.

Part Context

This component belongs to the EDAC 306 series of card edge connectors, which are characterized by their robust construction and standardized pin layouts. The series offers various position counts and configurations to support diverse electronic interconnection needs across industrial and commercial sectors.

Replacement Considerations

Compatible substitutes within the same series include 306-021-421-103 and 306-021-521-107. Verify mechanical fit and electrical specifications before substitution.
