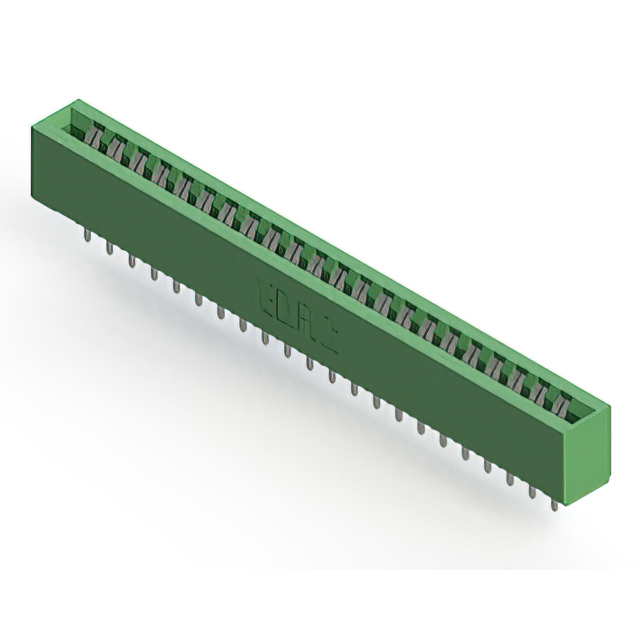

306-022-420-101

$10.81

Description：CONN EDGE DUAL FMALE 44POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:3434a7febee1 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 44POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：22
Number of Positions：44
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Tin
Contact Finish Thickness：-
Contact Type：Cantilever
Color：Green
Flange Feature：-
Operating Temperature：-40°C ~ 105°C

Download product information

306-022-420-101

Overview

The EDAC Inc. 306-022-420-101 is a standard card edge connector receptacle featuring 44 positions with a single centerline row. It utilizes .156 inch (3.96mm) contact spacing and accepts printed circuit boards with a nominal thickness of .062 inch (1.57mm). The component employs gold-plated copper alloy contacts for reliable signal transmission. Designed for panel mount installation, it offers a low-profile insulator body constructed from thermoplastic polyester. The connector supports vertical orientation and provides robust mechanical stability for edgeboard applications.

Feature Summary

Accepts .062 inch nominal thickness PCBs
Low profile insulator body design
Gold-plated copper alloy contacts

Applications

Standard card edge interconnection systems
Panel mounted electronic assemblies
Vertical orientation circuit board interfaces

Procurement Notes

Verify the specific part number against official EDAC documentation to confirm current availability and lead times. Ensure that the required PCB thickness matches the .062 inch specification for proper engagement. Confirm that the panel mounting style aligns with the system design requirements before finalizing procurement orders.

Selection Notes

Select this component when a single-row, 44-position interface is required for .156 inch spaced connections. Ensure the application environment is compatible with the operating temperature range specified in the datasheet. Verify that the vertical mounting configuration fits within the available chassis space constraints.

Part Context

This component belongs to the EDAC 306 series of standard card edge connectors. The series is characterized by its versatility in accepting various board thicknesses and offering multiple position counts. The 306 series is widely used in industrial and commercial electronics where reliable edgeboard connectivity is essential.

Replacement Considerations

Consult official EDAC substitution guides for verified alternative part numbers. Ensure any replacement maintains identical contact spacing, position count, and mounting style specifications.
