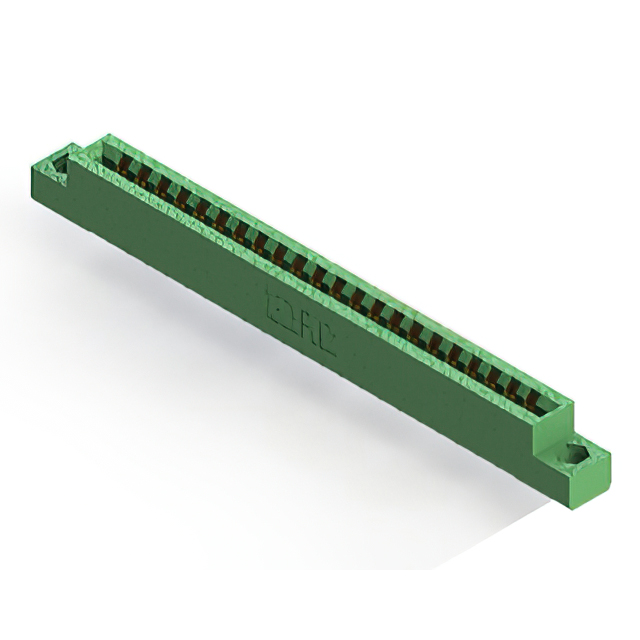

306-022-521-104

$10.81

Description：CONN EDGE DUAL FMALE 44POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:302f9a607233 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 44POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：22
Number of Positions：44
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Operating Temperature：-40°C ~ 105°C

Download product information

306-022-521-104

Overview

The EDAC Inc. 306-022-521-104 is a dual-sided card edge connector featuring 44 positions with a 0.156-inch (3.96mm) contact spacing. It utilizes a single centerline row design and accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). The component employs a low-profile insulator body constructed from thermoplastic polyester, finished in green. Contact surfaces are plated with tin over copper alloy, ensuring reliable electrical performance. Designed for vertical panel mounting via through-hole termination, it supports operating temperatures ranging from -40°C to +105°C.

Feature Summary

Dual-sided female configuration with 44 total positions
Accepts standard 0.062 inch nominal PCB thickness
Low-profile insulator body construction
Vertical panel mount installation method

Applications

Computing and storage systems
Medical equipment interfaces
Aerospace communication networks
Industrial control modules

Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact plating, flange style, and board thickness compatibility. Ensure that the selected variant matches the required mechanical constraints and environmental ratings for the intended application before finalizing procurement orders.

Selection Notes

Select this connector when a dual-sided interface with 44 positions and 3.96mm pitch is required. Confirm that the target PCB thickness aligns with the 0.062-inch specification. Evaluate thermal requirements against the -40°C to +105°C operational range and ensure vertical mounting space is available for the low-profile body design.

Part Context

This component belongs to the EDAC 306 Series, which specializes in standard card edge connectors for rack and panel applications. The series provides interconnect solutions for computing, medical, aerospace, and industrial sectors, emphasizing rigorous quality assurance and global logistics support for OEM integration.

Replacement Considerations

Cross-reference part numbers within the EDAC 306 family for alternative position counts or flange configurations. Verify mechanical footprint and pinout compatibility before substituting with other manufacturers' dual-sided card edge connectors.
