Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 46POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：23
- Number of Positions：46
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Cantilever
- Color：Green
- Flange Feature：-
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

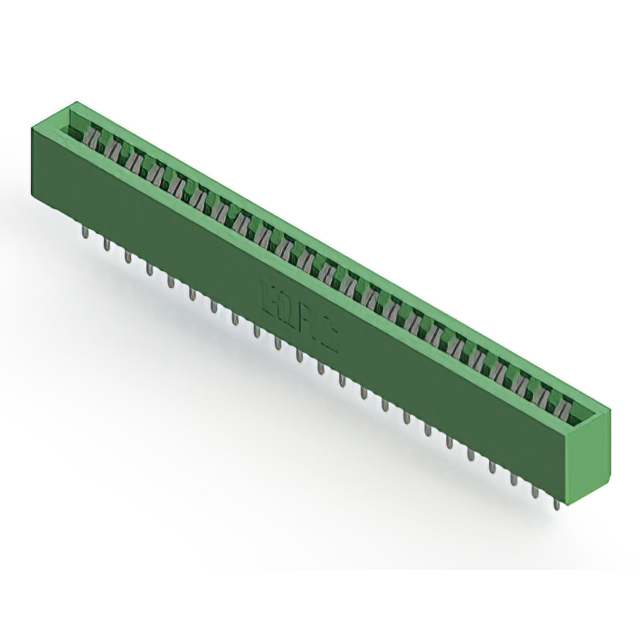

The EDAC Inc. 306-023-420-101 is a dual female card edge connector featuring 46 positions arranged in two rows with a 0.156-inch (3.96 mm) contact spacing. Designed for panel and through-hole mounting, it accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). The unit utilizes copper alloy contacts with tin plating and a green thermoplastic polyester insulator body. It operates within a temperature range of -40°C to 105°C and complies with RoHS3 standards.
Feature Summary
- Accepts standard .062 inch thick PCBs
- Low profile insulator body design
- Single centerline row configuration
Applications
- Panel mount electronic assemblies
- Through-hole PCB interconnection
- Standard card edge interface systems
Procurement Notes
Verify the specific ordering suffix against the manufacturer's current datasheet to ensure compatibility with required board thicknesses and mounting styles. Confirm that the tin-plated contact finish meets the environmental requirements for the intended application environment. Check for any recent updates to the RoHS3 compliance status before finalizing procurement orders.
Selection Notes
Select this component when a low-profile, dual-row connector is required for .062 inch thick boards. Ensure the application supports through-hole or panel mounting methods. Verify that the 0.156 inch pitch aligns with the target PCB layout constraints. Consider the operating temperature range limits relative to the system's thermal profile.
Part Context
This part belongs to the EDAC 306 series of standard card edge connectors. The series is characterized by its ability to accommodate standard .062 inch PCB thicknesses while maintaining a compact form factor. It serves as a reliable interconnection solution for general-purpose electronic modules requiring robust mechanical retention.
Replacement Considerations
- 306-023-421-102
FAQ
What is the nominal PCB thickness accepted by this connector?
The connector is designed to accept printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm).
Does this connector feature a single or double row configuration?
It features a dual female configuration with a single centerline row arrangement.
