Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 46POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：23
- Number of Positions：46
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：Card Guides
- Mounting Type：Panel Mount, Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

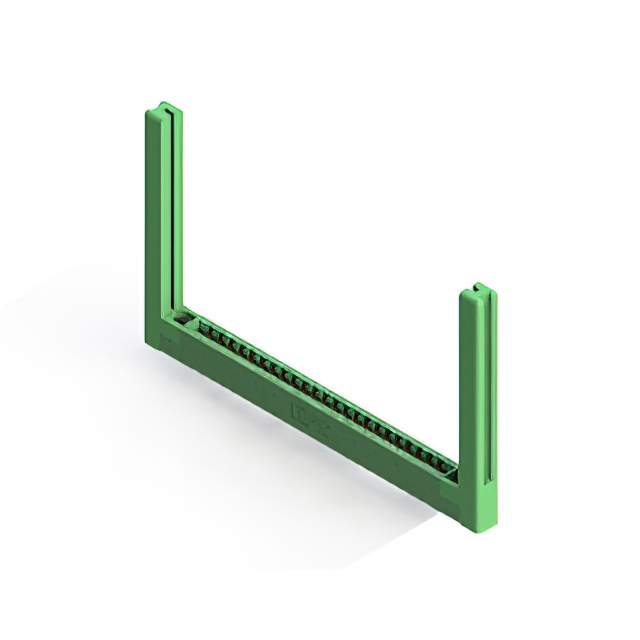

The EDAC Inc. part number 306-023-521-158 is a dual-edge female card edge connector designed for vertical panel mount applications. It features 46 positions with a contact spacing of 0.156 inches (3.96 mm). The connector utilizes gold-plated copper alloy contacts and a green thermoplastic polyester insulator body. It accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm) and employs solder pin termination for secure board attachment.
Feature Summary
- Dual-edge configuration provides robust connection stability for double-sided PCBs
- Gold plating on contact areas ensures reliable signal transmission and corrosion resistance
- Vertical panel mount design facilitates direct integration into chassis or enclosure structures
Applications
- Medical interconnect systems requiring durable connections
- Agricultural technology equipment operating in harsh environments
- Industrial control panels needing high-reliability interface solutions
Procurement Notes
Verify the specific manufacturer datasheet to confirm current RoHS compliance status and REACH restrictions before finalizing procurement. Ensure that the selected variant matches the required PCB thickness tolerance of 1.57 mm. Cross-reference the ordering guide to confirm availability of the exact suffix configuration, as minor variations may exist within the series.
Selection Notes
Select this component when a dual-edge female connector is required for vertical mounting. The 0.156-inch pitch suits standard industrial PCB layouts. Verify that the application environment does not exceed the material temperature ratings. Confirm that the 46-position count aligns precisely with the target circuit board trace density and layout requirements.
Part Context
This component belongs to the EDAC 306 Series, which specializes in standard card edge connectors. The series offers various position counts and mounting styles tailored for general-purpose electronic interconnections. The 306 Series is characterized by its use of thermoplastic polyester insulators and standardized contact spacing for broad compatibility.
Replacement Considerations
Direct substitutes within the same series include part numbers such as 306-021-521-158. Verify mechanical dimensions and electrical ratings against the original specification sheet before substitution.
