306-025-521-104

$12.01

Description：CONN EDGE DUAL FMALE 50POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:8bd40a064536 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 50POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：25
Number of Positions：50
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Operating Temperature：-40°C ~ 105°C

Download product information

306-025-521-104

Overview

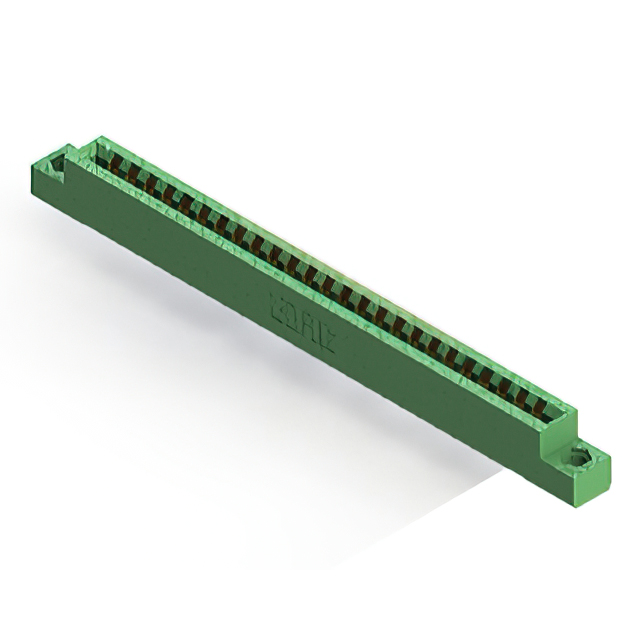

The EDAC Inc. 306-025-521-104 is a standard card edge connector from the 306 series, designed for vertical panel mounting applications. It features a dual female configuration with 50 positions arranged in two rows. The connector utilizes a 0.156-inch (3.96 mm) contact spacing and accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). Contacts are gold-plated copper alloy, rated for 5 A current at +105°C maximum operating temperature. The insulator body is made of thermoplastic material.

Feature Summary

Dual-edge female contact design accommodates non-specified double-sided PCBs
Vertical panel mount style ensures secure structural integration
Gold-plated contacts provide reliable electrical conductivity and corrosion resistance

Applications

Industrial control system interconnects
Telecommunications equipment backplanes
Test and measurement instrument modules

Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact pin count, row configuration, and plating specifications. Ensure compatibility with target PCB thickness tolerances before procurement. Confirm RoHS compliance status through manufacturer datasheets. Validate lead times directly with authorized distributors as availability may vary by region.

Selection Notes

Select this component when a high-density dual-row connection is required for thick PCBs. The 3.96 mm pitch offers robust mechanical stability compared to finer pitches. Verify that the vertical mounting orientation aligns with chassis design constraints. Ensure the thermal rating meets the operational environment requirements.

Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series is characterized by its low-profile insulator body and single centerline row architecture per side. It serves as a reliable interface solution for board-to-board or board-to-backplane connections in demanding electronic environments.

Replacement Considerations

Cross-reference with other EDAC 306 series variants sharing identical 50-position dual-edge specifications. Verify dimensional compatibility and contact spacing consistency before substitution.
