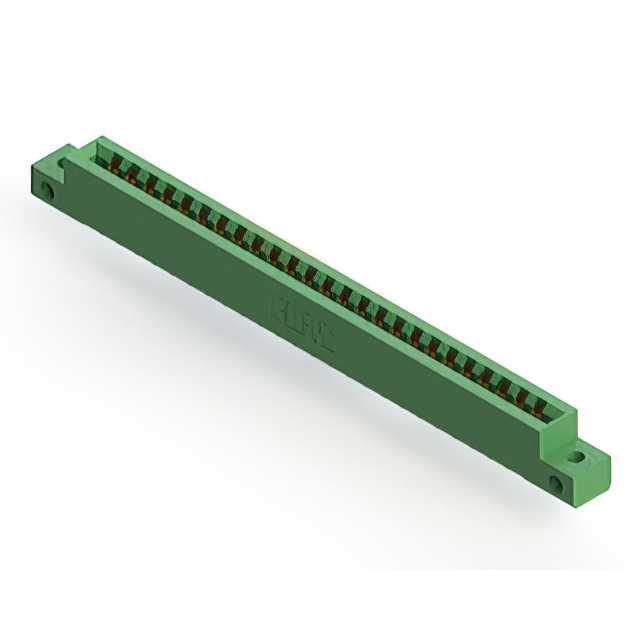

306-025-521-112

$13.10

Description：CONN EDGE DUAL FMALE 50POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:cba33734b480 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 50POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：25
Number of Positions：50
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Operating Temperature：-40°C ~ 105°C

Download product information

306-025-521-112

Overview

The EDAC Inc. 306-025-521-112 is a standard card edge connector designed for dual-edge printed circuit board applications. It features 50 positions arranged in two rows with a contact spacing of 0.156 inches (3.96 mm). The component utilizes gold-plated copper alloy contacts and a green thermoplastic insulator body. Rated for 5 A current, it supports PCB thicknesses of 0.062 inches (1.57 mm) nominal. Operating temperatures range from -40°C to +85°C.

Feature Summary

Dual-edge female connector configuration for secure mating with double-sided PCBs
Gold-plated copper alloy contacts ensure reliable signal transmission and corrosion resistance
Low-profile insulator body design accommodates space-constrained panel installations

Applications

Industrial control system interconnects
Telecommunications equipment backplanes
Test and measurement instrumentation modules

Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact plating thickness, material composition, and environmental ratings. Ensure compatibility with target PCB stack-up dimensions before procurement. Confirm RoHS compliance status through manufacturer datasheets or certified test reports prior to integration into regulated assemblies.

Selection Notes

Select this component when dual-edge connectivity with 3.96 mm pitch is required. Verify that the target PCB thickness aligns with the 1.57 mm nominal specification. Assess thermal requirements against the -40°C to +85°C operating range. Confirm mechanical fit within the designated panel mounting area considering the vertical installation style.

Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and spacing options. The 306 series is characterized by its robust construction suitable for general-purpose electronic interconnections. It serves as a reliable interface solution between circuit boards and external systems.

Replacement Considerations

Cross-reference compatible parts such as 306-025-521-178 or 306-025-525-101 if alternative colors or minor variations are acceptable. Ensure pin count, pitch, and termination method match exactly. Consult official substitution lists for verified equivalents.
