Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 52POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：26
- Number of Positions：52
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount, Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

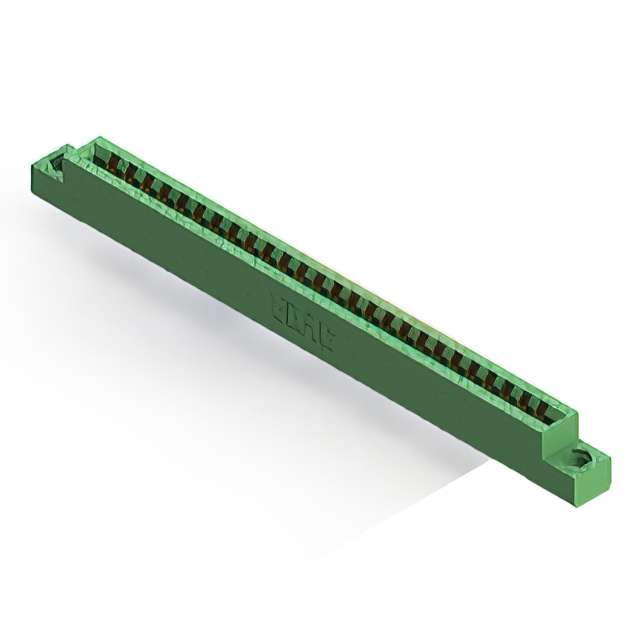

The EDAC Inc. model 306-026-521-104 is a standard card edge connector designed for dual-edge PCB insertion. It features 52 positions with a 3.96 mm (0.156 inch) contact spacing and accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). The component utilizes gold-plated copper alloy contacts housed in a green thermoplastic insulator body. Rated for 5 A current, it operates within a temperature range of -40°C to +105°C and maintains an insulation resistance of 5 GOhms.
Feature Summary
- Dual-edge female connector configuration for secure board retention
- Gold-plated copper alloy contacts ensure reliable signal transmission
- Low-profile thermoplastic insulator body accommodates standard PCB thicknesses
Applications
- Computing and storage systems
- Medical equipment interfaces
- Aerospace instrumentation panels
- Industrial control modules
Procurement Notes
Verify the specific ordering suffix against official EDAC documentation to confirm material composition and plating specifications. Ensure compatibility with target PCB dimensions before procurement. Confirm RoHS compliance status through the manufacturer's latest datasheet or product compliance reports prior to finalizing supply chain agreements.
Selection Notes
Select this component when a vertical, panel-mountable card edge interface is required for high-density applications. The 3.96 mm pitch suits designs needing robust mechanical retention for dual-edge cards. Verify that the operating environment remains within the specified thermal limits and that the board thickness matches the connector's acceptance criteria.
Part Context
This part belongs to the EDAC 306 series of standard card edge connectors. The series provides interconnect solutions for rack and panel applications across computing, medical, and industrial sectors. EDAC manufactures these components to meet rigorous quality standards for global distribution channels and OEM integration requirements.
Replacement Considerations
Consult official EDAC substitution guides for verified alternative part numbers. Do not assume cross-compatibility with other manufacturers' products without verifying pinout, pitch, and mechanical envelope alignment.
FAQ
What is the nominal PCB thickness accepted by this connector?
The connector accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch).
Is the connector single-row or dual-row?
The 306-026-521-104 is a dual-edge connector, providing contacts on both sides of the card edge.
