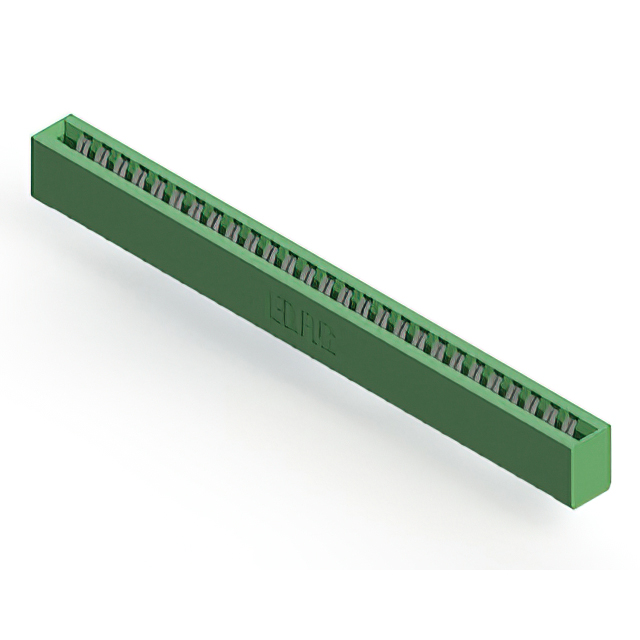

306-027-421-101

$12.69

Description：CONN EDGE DUAL FMALE 54POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:c54ede573ff6 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 54POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：27
Number of Positions：54
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Tin
Contact Finish Thickness：-
Contact Type：Cantilever
Color：Green
Flange Feature：-
Operating Temperature：-40°C ~ 105°C

Download product information

306-027-421-101

Overview

The EDAC Inc. 306-027-421-101 is a standard card edge connector receptacle featuring 54 positions in a single row configuration. It utilizes a 3.96 mm (0.156 inch) contact spacing and is designed for panel mount installation at a vertical angle. The connector accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). Contacts are constructed from copper alloy with tin plating, supporting a current rating of 5 A. The housing is made of green thermoplastic polyester, providing insulation resistance of 5 GOhms.

Feature Summary

Accepts PCBs with a nominal thickness of 0.062 inches
Features a low-profile insulator body design
Utilizes a single centerline row for contact arrangement

Applications

Panel-mounted electronic interconnections
Edgeboard connector systems requiring vertical mounting
Industrial control units utilizing standard card edge interfaces

Procurement Notes

Verify the specific contact plating material, as datasheets may list variations such as gold or tin for this series. Confirm that the required PCB thickness matches the 0.062-inch specification to ensure proper mechanical retention. Check regional availability restrictions, as some distributors report limited stock or shipping limitations for this specific part number.

Selection Notes

Select this component when a single-row, vertical card edge interface is required for panel mounting. Ensure the application demands a 3.96 mm pitch and a 5 A current capacity. Verify compatibility with the target PCB thickness of 1.57 mm. Consider the tin-plated contacts if corrosion resistance requirements align with the specified environment.

Part Context

This component belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and plating options, including gold and tin finishes. The 306 series is characterized by its thermoplastic polyester housing and robust copper alloy contacts, suitable for general-purpose industrial and commercial electronic assemblies.

Replacement Considerations

Compatible substitutes within the same series include 306-027-421-168, which shares identical physical dimensions and positioning but features different contact plating specifications.
