306-028-500-168

$15.37

Description：CONN EDGE DUAL FMALE 56POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box

SKU:9f04d5cd2103 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 56POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：28
Number of Positions：56
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：Card Guides
Mounting Type：Panel Mount
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Download product information

306-028-500-168

Overview

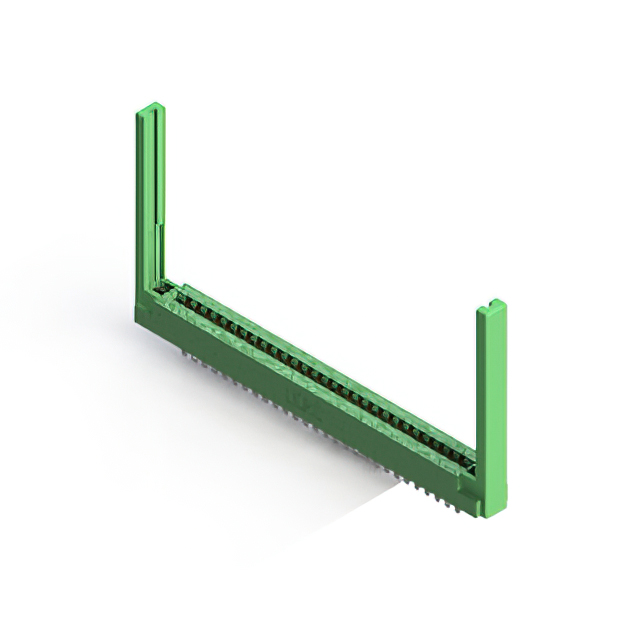

The EDAC Inc. 306-028-500-168 is a dual-sided female card edge connector designed for panel mounting applications. It features 56 positions with a 0.156-inch (3.96mm) spacing and utilizes solder eyelet termination. The contacts are made of copper alloy with a gold plating thickness of 10.0µin (0.25µm). The housing is constructed from thermoplastic polyester, rated for operation between -40°C and +105°C, and supports card thicknesses from 0.054 to 0.070 inches.

Feature Summary

Dual-sided female contact configuration for robust board interface
Panel mount installation with flanged design for secure positioning
Solder eyelet termination method for reliable circuit attachment

Applications

Industrial control system interconnects
Telecommunications equipment backplanes
Automotive electronic module connections

Procurement Notes

Verify the specific ordering suffix against the official EDAC 306 Series Ordering Guide to ensure correct pin count, termination style, and plating specifications. Confirm that the required card thickness falls within the 0.054 to 0.070 inch range for proper mechanical engagement. Check RoHS compliance status if restricted substances are a project constraint.

Selection Notes

Select this component when a dual-sided connection with 56 pins is required at a 0.156-inch pitch. Ensure the application environment temperature remains within the -40°C to +105°C operational limit. Verify that the PCB layout accommodates the solder eyelet termination geometry and that the panel cutout matches the flange dimensions for proper alignment.

Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series offers various configurations in terms of position count and termination styles. The 306 series is characterized by its thermoplastic polyester insulation and copper alloy contacts, providing a balance of durability and electrical performance for general-purpose industrial applications.

Replacement Considerations

Consult the EDAC 306 Series Ordering Guide for direct substitutes with different pin counts or termination types. Cross-reference with other manufacturers' dual-sided card edge connectors only if mechanical dimensions and electrical ratings are fully compatible.
