Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 56POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：28
- Number of Positions：56
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：Card Guides
- Mounting Type：Panel Mount, Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

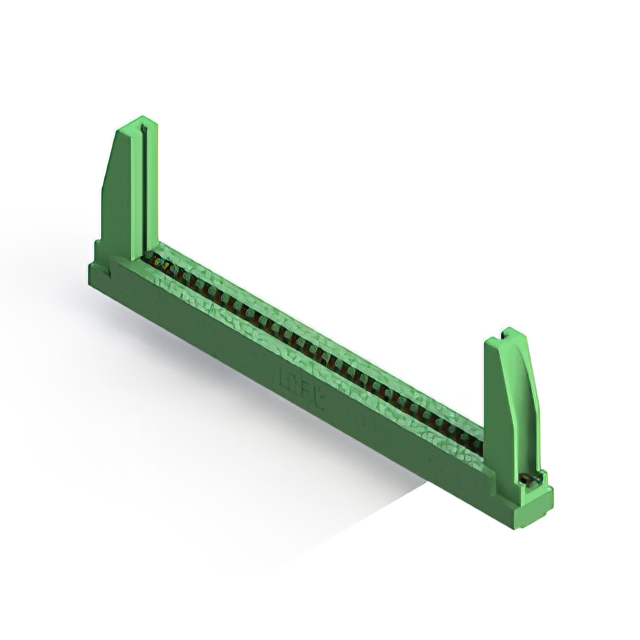

The EDAC Inc. 306-028-521-178 is a dual-edge female card edge connector from the 306 Series, designed for panel and through-hole mounting. It features 56 positions arranged in two rows of seven, with a 0.156-inch (3.96mm) contact spacing. The connector utilizes gold-plated cantilever contacts on a green thermoplastic polyester insulator. It supports PCB thicknesses between 0.054 and 0.070 inches and operates within a temperature range of -40°C to 105°C.
Feature Summary
- Dual-edge female configuration with cantilever spring contacts for reliable board insertion
- Panel mount design with flange featuring top openings and threaded inserts
- Gold-plated terminals ensure corrosion resistance and stable signal transmission
Applications
- Industrial control system backplanes
- Telecommunications equipment interconnects
- Consumer electronics module connections
Procurement Notes
Verify the specific ordering suffix against the manufacturer's official 306 Series Ordering Guide to confirm exact pin count, plating thickness, and flange specifications. Ensure compatibility with the target PCB thickness range of 0.054 to 0.070 inches before procurement. Confirm RoHS compliance status if required by project regulations.
Selection Notes
Select this component when a high-density connection with 56 pins is required using a standard 0.156-inch pitch. The dual-edge design accommodates thicker boards compared to single-edge variants. Consider the panel-mount flange requirements for mechanical stability in the final assembly environment.
Part Context
This part belongs to the EDAC 306 Series, which provides a broad range of card edge connectors for various industrial applications. The series is known for its robust construction and standardized dimensions, facilitating integration into larger electronic systems requiring durable edge-board interfaces.
Replacement Considerations
Consult the EDAC 306 Series cross-reference documentation for direct substitutes. Verify that any alternative maintains the same 0.156-inch pitch, 56-position count, and dual-edge female configuration to ensure mechanical and electrical compatibility.
FAQ
What is the recommended PCB thickness for this connector?
The connector is designed for printed circuit boards with a thickness ranging from 0.054 inches to 0.070 inches.
Does this connector include mounting flanges?
Yes, it features a flange with top openings and threaded inserts for secure panel installation.
