306-029-420-101

Overview

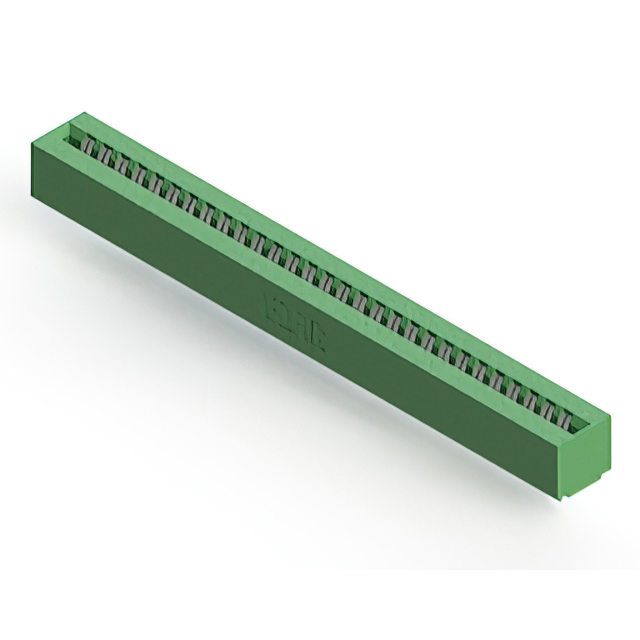

The EDAC Inc. 306-029-420-101 is a standard card edge connector receptacle from the 306 series. It features 58 positions with a 3.96 mm (0.156 inch) pitch and accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). The component utilizes gold-plated copper alloy contacts and employs a solder pin termination type for secure electrical connection. Designed for panel mount installation, it maintains a vertical orientation relative to the mating board.

Feature Summary

• Accepts .062" (1.57mm) nominal thickness P.C. Board
• Low profile insulator body design
• Single centreline row configuration

Applications

• Panel-mounted electronic assemblies requiring card edge interface
• Industrial control systems utilizing standard PCB thicknesses
• Vertical interconnection applications in modular hardware designs

Procurement Notes

Verify the specific contact plating and termination style against the official manufacturer datasheet before procurement. Confirm that the 58-position count and 3.96 mm pitch align precisely with the target PCB layout requirements. Ensure the panel mount vertical orientation matches the mechanical assembly constraints. Cross-reference the RoHS compliance status directly with the current product documentation to meet regulatory standards.

Selection Notes

Select this component when a single-row, low-profile card edge receptacle is required for 1.57 mm thick boards. The 3.96 mm pitch distinguishes it from finer-pitch alternatives. Verify that the 58-position capacity meets the signal or power line requirements of the application. Ensure the vertical panel mount style fits within the available enclosure depth and mounting hole specifications.

Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and pitch options tailored for different board thicknesses. The 306-029 variant specifically addresses the 0.156 inch pitch requirement, providing a robust solution for applications needing reliable vertical interconnection between a chassis and a plug-in circuit board.

Replacement Considerations

Direct substitutes include other EDAC 306 series parts with identical 58-position counts and 3.96 mm pitch, such as the 306-029-420-112, provided the termination style and plating match the original design intent. Verify mechanical dimensions and mounting configurations before substitution.
