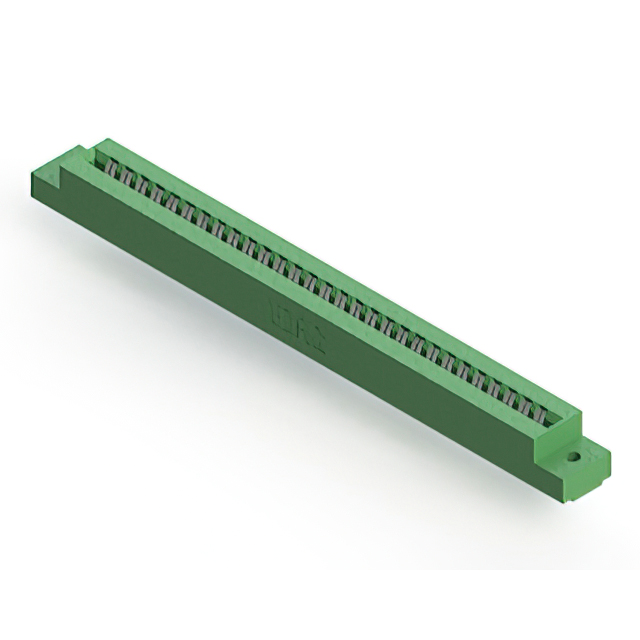

306-029-421-102

$13.34

Description：CONN EDGE DUAL FMALE 58POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:2bc4b50215fc Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 58POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：29
Number of Positions：58
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Tin
Contact Finish Thickness：-
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Operating Temperature：-40°C ~ 105°C

Download product information

306-029-421-102

Overview

The EDAC Inc. 306-029-421-102 is a standard card edge connector receptacle featuring 58 positions with a 3.96 mm pitch. Designed for panel mount installation, it utilizes solder pin termination and gold-plated copper alloy contacts rated at 5 A. The unit accommodates a PCB thickness of 1.57 mm and employs a thermoplastic polyester insulator body.

Feature Summary

Dual-edge female contact configuration for non-specified card types
Low-profile insulator body design
Accepts nominal 1.57 mm thick printed circuit boards

Applications

Panel-mounted electronic interconnect systems
Industrial control board connections
Telecommunications hardware interfaces

Procurement Notes

Verify the specific ordering suffix to confirm contact plating and row configuration. Ensure the target application requires dual-edge compatibility rather than single-edge variants within the 306 series. Confirm thermal ratings align with operational requirements before finalizing procurement specifications.

Selection Notes

Select this component when a 58-position interface with 3.96 mm spacing is required. It is suitable for applications demanding robust panel mounting with vertical orientation. Consider the 5 A current rating and gold plating for reliable signal transmission in industrial environments.

Part Context

This part belongs to the EDAC 306 Series, which provides standardized card edge connectors with 3.96 mm contact spacing. The series offers various position counts and termination options for diverse electronic assembly needs.

Replacement Considerations

Compatible substitutes include other 306 series parts such as 306-023-421-102 or 306-030-421-102, provided the position count matches the design requirement.
