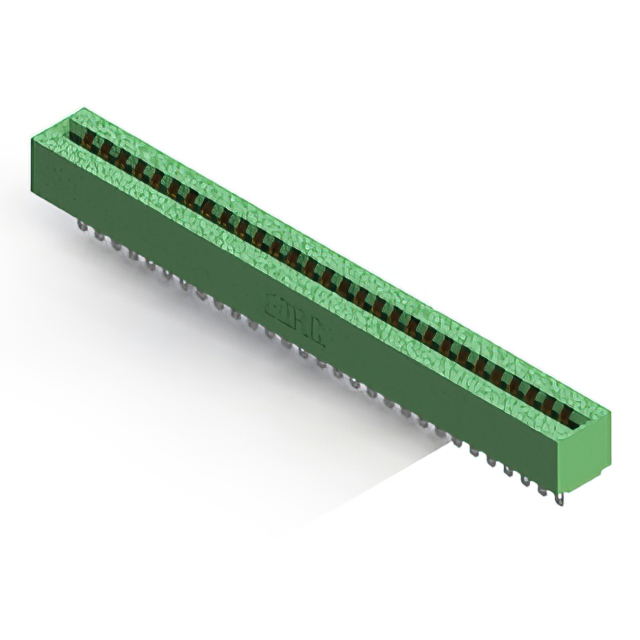

306-029-500-101

$13.34

Description：CONN EDGE DUAL FMALE 58POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box

SKU:523c319745ef Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 58POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：29
Number of Positions：58
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Free Hanging (In-Line)
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：-
Operating Temperature：-40°C ~ 105°C

Download product information

306-029-500-101

Overview

The EDAC Inc. part number 306-029-500-101 is a standard card edge connector designed for dual female termination. It features 58 positions with a contact spacing of 0.156 inches (3.96mm). The connector utilizes gold plating on the contacts to ensure reliable signal transmission. It is engineered to accept printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). The insulator body is constructed as a low-profile design, suitable for space-constrained applications requiring robust mechanical connection.

Feature Summary

Dual female termination configuration for secure board insertion
Gold-plated contacts for enhanced conductivity and corrosion resistance
Low-profile insulator body optimized for compact assembly requirements

Applications

Single centerline row edge board connections
Electronic assemblies requiring 0.062 inch PCB thickness compatibility
Standard card edge interface systems

Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact pin count and termination style. Ensure that the procurement order matches the required contact spacing and board thickness specifications. Cross-reference the manufacturer datasheet for any recent product change notifications or environmental compliance updates prior to finalizing purchase orders.

Selection Notes

Select this component when a dual female card edge connector with 0.156-inch pitch is required. Confirm that the target application supports a single centerline row arrangement. Verify that the printed circuit board thickness aligns with the 0.062-inch nominal specification. Consider the low-profile form factor if vertical clearance within the enclosure is limited.

Part Context

This component belongs to the EDAC standard card edge connector family. It serves as a receptacle type interface for connecting edge-mounted circuit boards. The series provides standardized dimensions and electrical characteristics for general-purpose electronic interconnections. It is distinct from high-density or specialized industrial variants within the broader EDAC portfolio.

Replacement Considerations

Consult official EDAC substitution guides for verified equivalent part numbers. Do not assume cross-compatibility with connectors from other manufacturers without verifying dimensional and electrical parameters.
