Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 58POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：29
- Number of Positions：58
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：Card Guides
- Mounting Type：Panel Mount
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

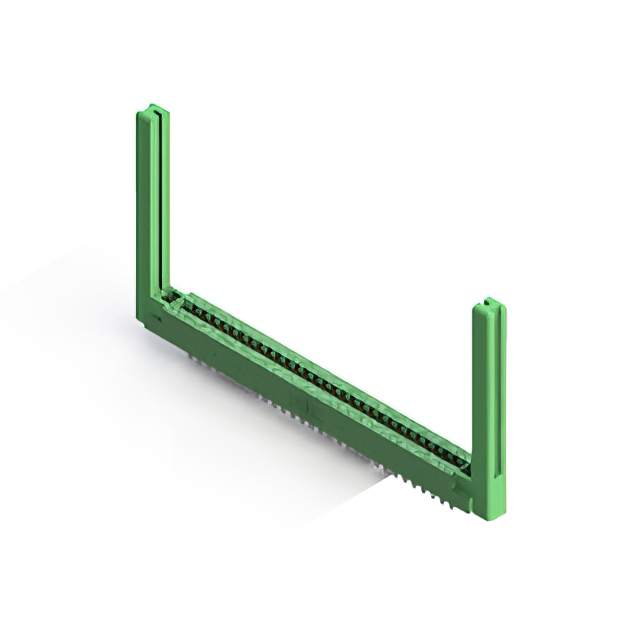

The EDAC Inc. model 306-029-500-158 is a dual-edge female card edge connector designed for panel and through-hole mounting. It features a 0.156-inch (3.96mm) contact spacing with a single centerline row configuration. The unit accommodates printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). Constructed with a low-profile insulator body, the connector utilizes gold-plated contacts to ensure reliable signal transmission in demanding environments.
Feature Summary
- Accepts standard 0.062 inch nominal thickness printed circuit boards
- Features a low-profile insulator body design for space-constrained applications
- Provides multiple card guide solutions for secure board retention
Applications
- Industrial control systems requiring robust interconnects
- Medical equipment needing reliable signal pathways
- Communication infrastructure hardware
Procurement Notes
Verify the specific pin count and termination style against project requirements before ordering. Confirm that the 0.156-inch pitch aligns with the target PCB layout. Ensure the panel mount installation method matches the chassis design specifications. Check for RoHS compliance status if environmental regulations apply to the final assembly.
Selection Notes
Select this component when a durable, high-spacing connector is required for vertical board insertion. The 0.156-inch pitch offers mechanical stability compared to finer pitches. Consider the low-profile body height if vertical clearance within the enclosure is limited. Verify that the gold plating meets the conductivity needs for the specific application signals.
Part Context
This part belongs to the EDAC 306 series, which specializes in card edge connectors for industrial and commercial use. The series provides various mounting options and termination styles. The 306 series is known for its reliability in harsh environments, supporting both single and double-sided board connections with standardized dimensions.
Replacement Considerations
Consult official EDAC documentation for direct substitutes within the 306 series. Verify compatibility of mating cards and mounting flanges before swapping parts. Generic equivalents may not match the precise 0.156-inch spacing or low-profile housing dimensions.
