Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 60POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：30
- Number of Positions：60
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

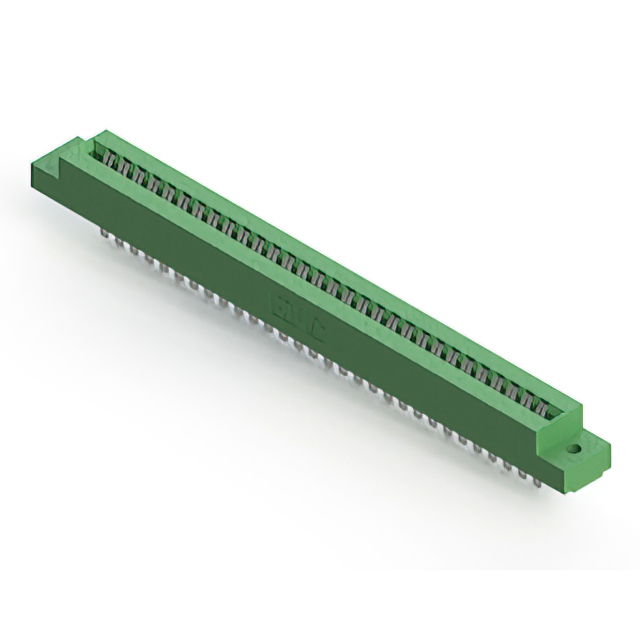

The EDAC Inc. model 306-030-400-102 is a standard card edge connector designed for panel mount applications. It features a dual female configuration with 60 positions and a 0.156-inch (3.96 mm) pitch. The contacts are tin-plated copper alloy, housed in green thermoplastic. This component supports single-row board insertion and is rated for vertical installation.
Feature Summary
- Dual female contact configuration for secure card edge mating
- Panel mount style with vertical orientation for stable integration
- Thermoplastic housing material providing structural support
Applications
- Industrial control panel interconnections
- Electronic module mounting systems
- Standard card edge circuit board interfaces
Procurement Notes
Verify the specific contact finish variant against project requirements, as datasheets may list tin or gold options within the same series. Confirm that the 60-position count matches the target PCB layout dimensions. Ensure the panel cutout specifications align with the physical housing constraints of this dual-edge receptacle design.
Selection Notes
Select this part when a high-density 60-position interface is required for panel-mounted modules. The 3.96 mm pitch accommodates standard board thicknesses. Verify compatibility with the mating card edge geometry to ensure proper alignment and electrical continuity during assembly and operation cycles.
Part Context
This component belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and termination styles. The 306-030-400-102 specifically denotes the 60-position dual female variant with tin plating, distinguishing it from single-row or gold-plated alternatives in the same family.
Replacement Considerations
Compatible substitutes include other EDAC 306 series parts with matching 60-position counts and 3.96 mm pitch. Verify that alternative models maintain the dual female gender and panel mount form factor to ensure mechanical interchangeability without redesigning the host enclosure.
