306-030-400-108

Overview

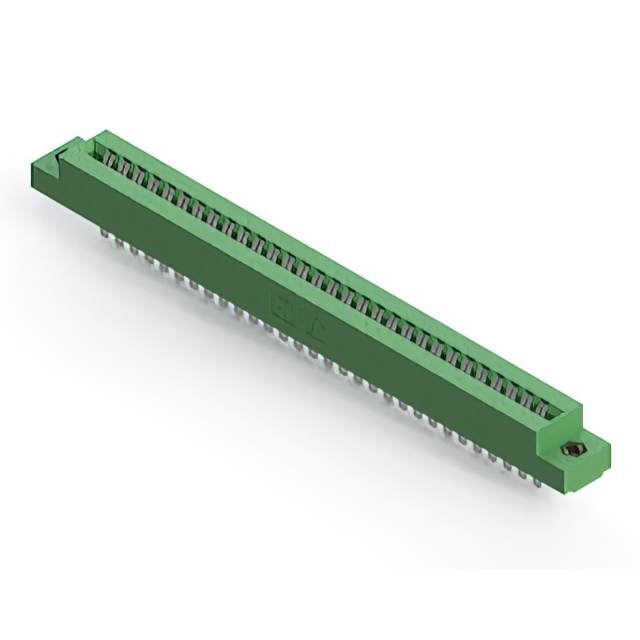

The EDAC Inc. model 306-030-400-108 is a standard card edge connector designed for panel mount vertical installation. It features 60 positions arranged in a single row with a contact spacing of 0.156 inches (3.96 mm). The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). Contacts are female, constructed from copper alloy, and finished with tin plating. The insulator body is green thermoplastic polyester.

Feature Summary

• Vertical panel mount design for secure board insertion
• Single centerline row configuration for compact layout
• Low profile insulator body construction
• Tin-plated copper alloy contacts for reliable connection

Applications

• Industrial control systems requiring robust edge connections
• Medical interconnect solutions
• Agricultural technology equipment
• General industrial electronic assemblies

Procurement Notes

Verify the specific ordering suffix to confirm contact finish and board thickness compatibility. The part number indicates a tin-plated finish; ensure this matches the system requirements rather than gold-plated variants. Confirm that the target PCB thickness aligns with the 0.062-inch specification. Check regional availability as distribution status may vary by location. Cross-reference the manufacturer datasheet for precise mechanical dimensions before finalizing procurement.

Selection Notes

Select this component when a single-row, vertical card edge interface is required for 0.062-inch thick boards. The 0.156-inch pitch allows for standard density routing. Tin plating offers cost-effective performance suitable for non-corrosive environments. Ensure the panel mounting style fits the enclosure design constraints. Compare against other series members if different contact counts or insulation colors are needed.

Part Context

This connector belongs to the EDAC 306 Series, which provides a range of standard card edge solutions. The series supports various position counts and mounting styles. The 306-030-400-108 specifically addresses applications needing 60 positions with a single row. It complements other EDAC products used in medical, industrial, and agricultural sectors.

Replacement Considerations

Direct substitutes within the same series include parts with identical pitch and board thickness but different position counts or finishes. Verify mechanical footprint compatibility before swapping. No alternative part numbers are confirmed as direct replacements without verifying specific electrical and mechanical parameters.
