306-030-420-101

Overview

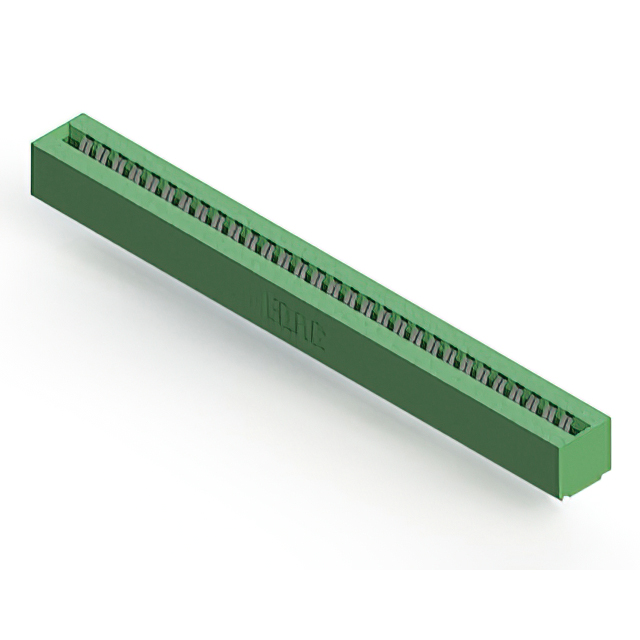

The EDAC Inc. model 306-030-420-101 is a standard card edge connector receptacle featuring 60 positions with a 3.96 mm (0.156 inch) pitch. It utilizes a single centerline row and accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). The connector employs copper alloy contacts with tin plating for reliable signal transmission. Designed for vertical panel mount installation, it offers a low-profile insulator body constructed from thermoplastic polyester. This component supports dual-edge card configurations and operates within a temperature range of -40°C to +105°C.

Feature Summary

• Vertical panel mount design with low-profile insulator body
• Accepts 1.57 mm nominal thickness PCBs
• Single centerline row configuration for dual-edge cards

Applications

• Industrial control systems requiring robust interconnects
• Computing and storage hardware backplanes
• Aerospace and defense electronic assemblies

Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to ensure compatibility with required board thickness and contact plating specifications. Confirm that the tin-plated contacts meet the environmental requirements for the intended application environment. Cross-reference the 60-position count and 3.96 mm pitch with the mechanical layout of the target PCB design to guarantee proper fitment and alignment during assembly.

Selection Notes

Select this component when a single-row, vertical card edge interface is required for dual-edge PCBs. Ensure the application accommodates the 1.57 mm board thickness specification. Consider the tin contact plating for cost-effective solutions where high corrosion resistance is not the primary driver compared to gold-plated alternatives. Verify that the panel mount style aligns with the enclosure design constraints.

Part Context

This part belongs to the EDAC 306 series, which provides a wide range of standard card edge connectors for various industrial and commercial applications. The series is known for offering diverse position counts and mounting styles to support complex interconnect needs in computing, medical, and communications sectors. The 306-030-420-101 specifically addresses the need for a 60-position vertical interface.

Replacement Considerations

Consult the official EDAC 306 Series Ordering Guide for verified substitute part numbers. Alternative options may include different contact platings or flange configurations within the same series. Do not assume cross-compatibility with other series without verifying mechanical and electrical parameters.
