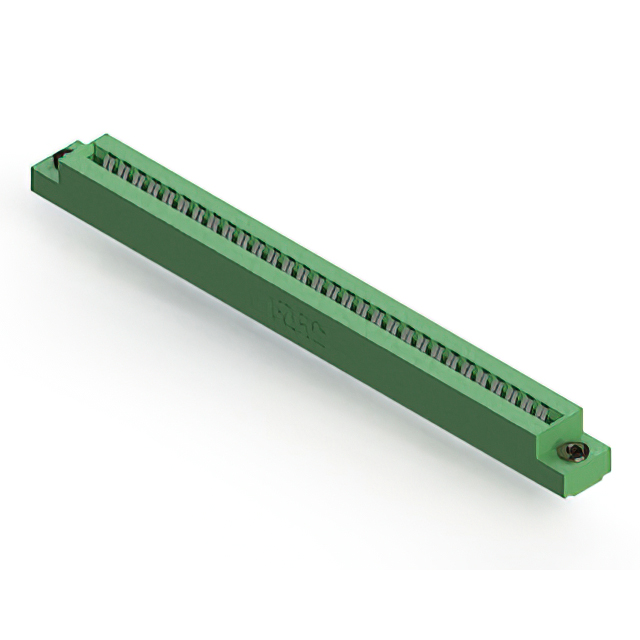

306-030-420-103

$15.35

Description：CONN EDGE DUAL FMALE 60POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:9196c579988b Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 60POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：30
Number of Positions：60
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Tin
Contact Finish Thickness：-
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
Operating Temperature：-40°C ~ 105°C

Download product information

306-030-420-103

Overview

The EDAC Inc. 306-030-420-103 is a standard card edge connector receptacle featuring 30 positions in a single row with a 3.96 mm (0.156 inch) pitch. Designed for vertical panel mount installation, it utilizes gold-plated copper alloy contacts and thermoplastic polyester insulation. The component supports a nominal PCB thickness of 1.57 mm and offers a current rating of 5 A with an insulation resistance of 5 GOhms.

Feature Summary

Vertical panel mount configuration for secure chassis integration
Gold-plated copper alloy contacts ensure reliable signal transmission
Thermoplastic polyester housing provides thermal stability

Applications

Industrial control system interconnections
Telecommunications equipment backplanes
Test and measurement instrument interfaces

Procurement Notes

Verify the specific ordering suffix to confirm contact plating and termination type. Confirm that the intended PCB thickness aligns with the 1.57 mm nominal specification. Ensure the application environment remains within the specified operating temperature range. Check RoHS compliance status against project requirements before finalizing procurement.

Selection Notes

Select this component when a single-row female connector with a 3.96 mm pitch is required. It is suitable for applications demanding vertical mounting and robust electrical performance. Consider the 5 A current rating and high insulation resistance for critical signal paths. Verify compatibility with the target board thickness and panel cutout dimensions.

Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series is characterized by its .156 inch spacing and low-profile insulator body design. These connectors are engineered to accept printed circuit boards with a nominal thickness of .062 inches, providing a standardized solution for edge-board applications across various electronic industries.
