Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 60POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：30
- Number of Positions：60
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：Card Guides
- Mounting Type：Panel Mount, Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

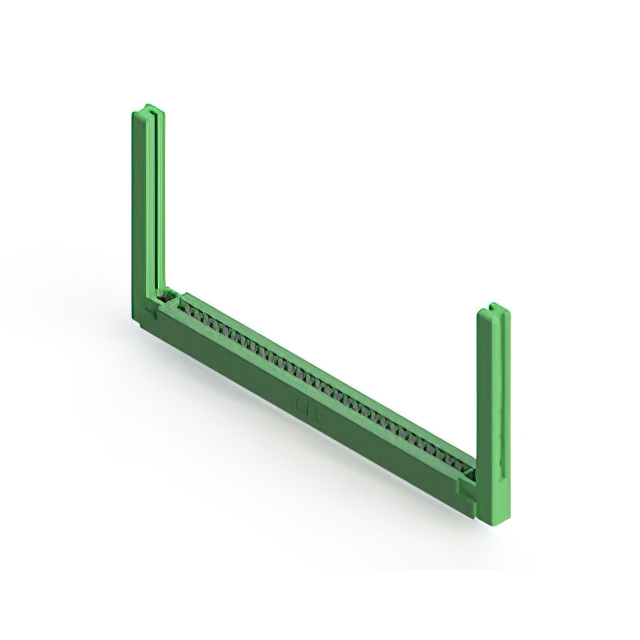

The EDAC Inc. 306-030-420-158 is a dual female card edge connector featuring 60 positions with a 0.156-inch (3.96mm) contact spacing. Designed for panel mount installation via through-hole solder termination, it utilizes copper alloy contacts with tin plating. The insulator body is constructed from thermoplastic polyester and accepts printed circuit boards with thicknesses ranging from 0.054 to 0.070 inches (1.37mm to 1.78mm). This component operates within a temperature range of -40°C to 105°C and includes flanges with a 0.156-inch diameter for secure mounting.
Feature Summary
- Dual female configuration providing two rows of connections for high-density signal routing
- Through-hole solder termination ensures robust mechanical stability on the PCB
- Flanged design with top opening facilitates precise alignment during panel installation
Applications
- Industrial control system interconnections
- Telecommunications equipment backplanes
- Consumer electronics module interfaces
Procurement Notes
Verify that the specific order suffix matches the required contact plating and insulation color specifications. Confirm compatibility with the target PCB thickness range of 0.054 to 0.070 inches. Ensure the panel cutout dimensions align with the 0.156-inch diameter flange requirements for proper mechanical retention.
Selection Notes
Select this model when a dual-row interface with 60 positions is required for panel-mounted applications. It is suitable for designs needing through-hole reliability and standard 0.156-inch spacing. Consider alternative series if surface-mount technology or different board thickness tolerances are necessary for the specific application constraints.
Part Context
This component belongs to the EDAC 306 Series, which specializes in standard card edge connectors. The series offers various position counts and termination styles to support diverse electronic assembly needs. The 306-030-420-158 variant specifically addresses requirements for dual-sided connectivity with durable through-hole mounting solutions.
Replacement Considerations
Direct substitutes within the same series include part numbers such as 306-030-420-104 or 306-030-420-157, provided they match the exact pin count and termination style. Verify cross-compatibility with other manufacturers' offerings by comparing dimensional drawings and electrical ratings.
