306-030-421-101

Overview

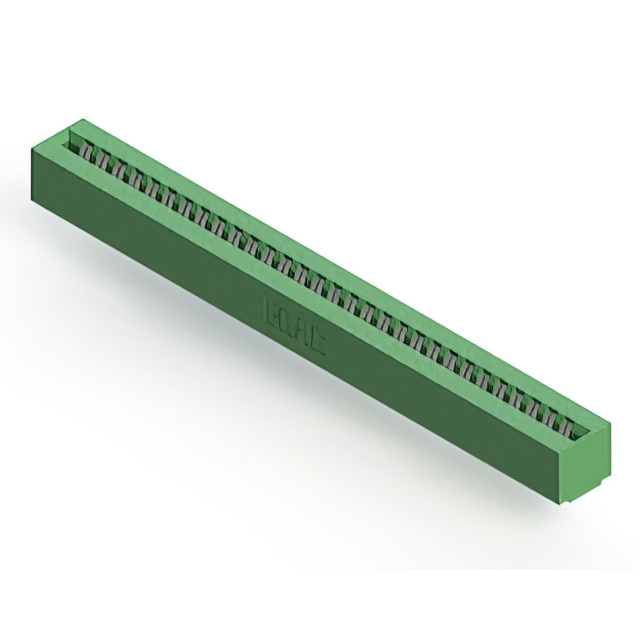

The EDAC Inc. 306-030-421-101 is a standard card edge connector receptacle designed for panel mount installation. It features 60 positions with a 3.96 mm (0.156 inch) pitch, configured for dual-edge board engagement. The connector utilizes copper alloy contacts with tin plating and a thermoplastic polyester housing in green. It supports a maximum operating temperature of +105°C and a minimum of -40°C, with a current rating of 5 A.

Feature Summary

• Dual-edge female contact configuration for secure board insertion
• Panel mount design with vertical orientation
• Thermoplastic polyester insulation material

Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment backplanes
• Test and measurement instrumentation boards

Procurement Notes

Verify the specific ordering suffix to ensure compatibility with required contact plating and housing color specifications. Confirm that the selected variant matches the intended dual-edge application requirements. Cross-reference the manufacturer datasheet for precise dimensional tolerances and mating force characteristics before finalizing procurement decisions.

Selection Notes

Select this component when a high-density, dual-sided card edge interface is required for panel-mounted assemblies. Ensure the host PCB thickness falls within the specified range of 1.37 mm to 1.78 mm for proper mechanical retention. Consider the tin-plated contacts for general-purpose applications where gold plating is not strictly necessary for corrosion resistance.

Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and mounting styles to accommodate diverse electronic packaging needs. The 306-030-421-101 specifically addresses applications requiring a 60-position dual-edge interface with through-hole termination capabilities.

Replacement Considerations

Direct substitutes may include other EDAC 306 series variants with matching 60-position dual-edge configurations. Verify pin count, pitch, and mounting style compatibility before substitution. Alternative manufacturers may offer similar specifications but require validation of mechanical fit and electrical performance.
