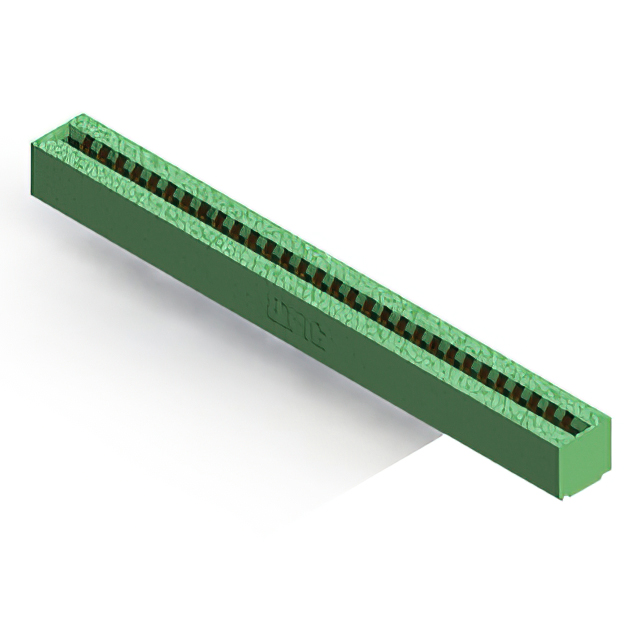

306-030-520-101

$13.62

Description：CONN EDGE DUAL FMALE 60POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:25ef6344764c Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 60POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：30
Number of Positions：60
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：-
Operating Temperature：-40°C ~ 105°C

Download product information

306-030-520-101

Overview

The EDAC Inc. 306-030-520-101 is a standard card edge connector designed for panel mounting applications. This component features a dual female configuration with 60 positions arranged in a single row. The contact pitch measures 0.156 inches (3.96 mm), accommodating a board thickness of 1.57 mm. Contacts are constructed from copper alloy and finished with gold plating to ensure reliable signal transmission. The housing utilizes thermoplastic polyester material, providing structural integrity and electrical insulation.

Feature Summary

Dual-edge female contact design for secure card insertion
Gold-plated copper alloy contacts for corrosion resistance
Thermoplastic polyester housing for thermal stability
Panel mount vertical installation style

Applications

Industrial control system interconnects
Telecommunications equipment backplanes
Computing hardware module connections
Test and measurement instrument interfaces

Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact pin count, plating thickness, and termination type. Ensure compatibility with mating card edge specifications regarding thickness and tolerance. Confirm RoHS compliance status through current manufacturer declarations prior to procurement.

Selection Notes

Select this connector when a 60-position dual-edge interface is required with a 3.96 mm pitch. Evaluate the thermoplastic housing properties against environmental operating temperatures. Verify that the panel mounting orientation aligns with the mechanical assembly constraints of the target enclosure design.

Part Context

This component belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and termination options. The 306-030-520-101 variant specifically addresses high-density connection needs within industrial and commercial electronic systems requiring robust mechanical retention.

Replacement Considerations

Cross-reference with EDAC part numbers sharing the same 3.96 mm pitch and 60-position dual-edge specification. Verify mechanical footprint and terminal compatibility before substituting. Consult official EDAC change notices for any form, fit, or function updates.
