Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 62POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：31
- Number of Positions：62
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount, Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

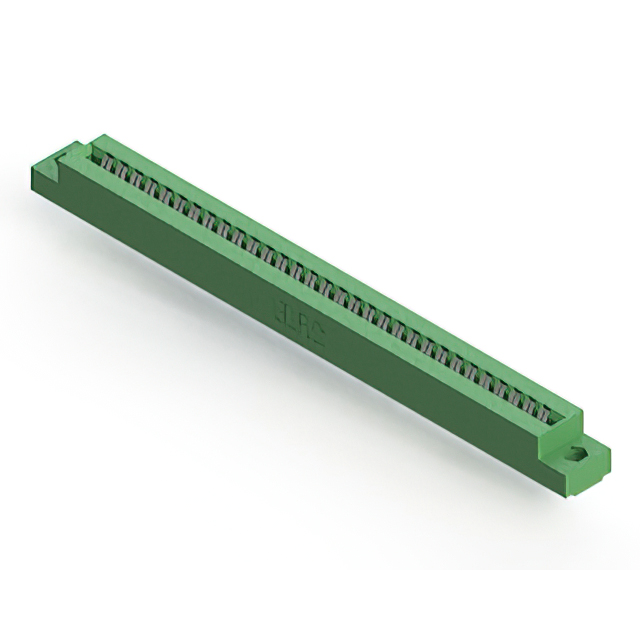

The EDAC Inc. 306-031-420-104 is a standard card edge connector receptacle from the 306 series. It features 62 positions with a 3.96 mm (0.156 inch) pitch and accepts PCBs with a nominal thickness of 1.57 mm (0.062 inch). The connector utilizes gold-plated copper alloy contacts and a thermoplastic polyester insulator. Designed for panel mount installation, it operates within a temperature range of -40°C to 105°C and carries RoHS compliance.
Feature Summary
- Accepts printed circuit boards with a nominal thickness of 1.57 mm
- Utilizes gold-plated copper alloy contacts for reliable signal transmission
- Constructed with a thermoplastic polyester insulator body
Applications
- Panel-mounted electronic assemblies requiring card edge interconnection
- Industrial control systems utilizing standardized board interfaces
- Test and measurement equipment with modular card architectures
Procurement Notes
Verify the specific contact plating and insulation material against the official manufacturer datasheet prior to procurement. Confirm that the required PCB thickness aligns with the component's nominal acceptance specifications. Ensure the selected variant matches the exact pin count and mounting style requirements for the target application interface.
Selection Notes
Select this component when a single-row, panel-mount receptacle is required for boards with a 1.57 mm thickness. The 3.96 mm pitch defines the board layout constraints. Verify thermal ratings and environmental compliance against operational conditions. Consider mechanical stability and mating cycle requirements during the design phase.
Part Context
This component belongs to the EDAC 306 series of standard card edge connectors. The series provides various position counts and mounting configurations for diverse industrial applications. The 306-031-420-104 specifically addresses needs for 62-position interfaces with robust panel mounting capabilities.
Replacement Considerations
Cross-reference part numbers such as 306-031-420-101 or 306-031-420-103 for alternative plating options within the same series. Verify dimensional compatibility and electrical ratings before substituting.
