306-031-520-158

Overview

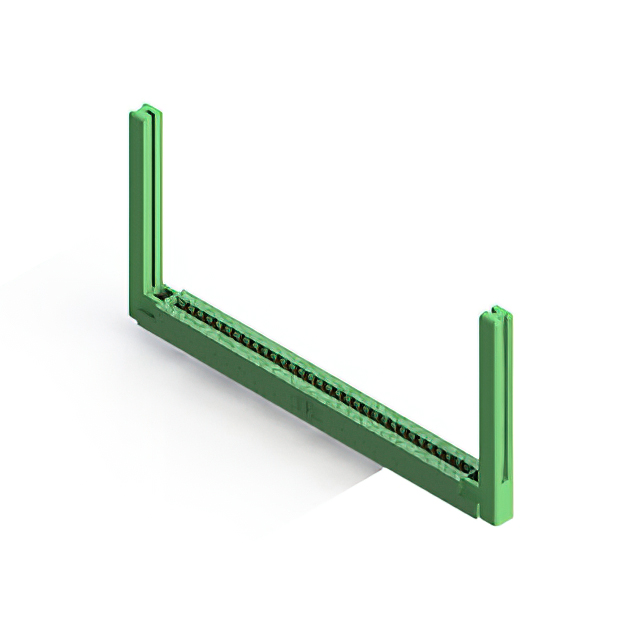

The EDAC Inc. 306-031-520-158 is a dual-edge female card edge connector from the 306 Series, featuring 62 positions with a 0.156-inch (3.96mm) contact spacing. It utilizes a panel mount installation style and employs gold-plated contacts for reliable signal transmission. The connector is designed to accommodate board thicknesses within the specified range of 0.054 to 0.070 inches.

Feature Summary

• Dual-edge female configuration for secure board insertion
• Gold-plated contact surfaces for enhanced conductivity
• Panel mount design with specific flange characteristics

Applications

• General electronic interconnect systems
• Industrial control panels
• Telecommunications equipment

Procurement Notes

Verify the exact pin count and series compatibility before procurement. Confirm that the target PCB thickness falls within the operational limits. Ensure the mounting style aligns with the mechanical enclosure requirements. Cross-reference the official datasheet for precise dimensional tolerances.

Selection Notes

Select this component when a high-density dual-edge interface is required. Consider the 0.156-inch pitch for standard board layouts. Evaluate the gold plating for corrosion resistance needs. Assess the panel mount constraints against the assembly environment.

Part Context

This part belongs to the EDAC 306 Series, which offers various configurations for card edge applications. The series provides options for different pin counts and termination styles. It supports diverse industrial and commercial connectivity demands through standardized dimensions.

Replacement Considerations

Check for direct substitutes within the same 306 Series family. Verify equivalent pin counts and spacing for compatible replacements. Consult official cross-reference lists for verified alternative part numbers.
