Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 62POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：31
- Number of Positions：62
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：Card Guides
- Mounting Type：Panel Mount, Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

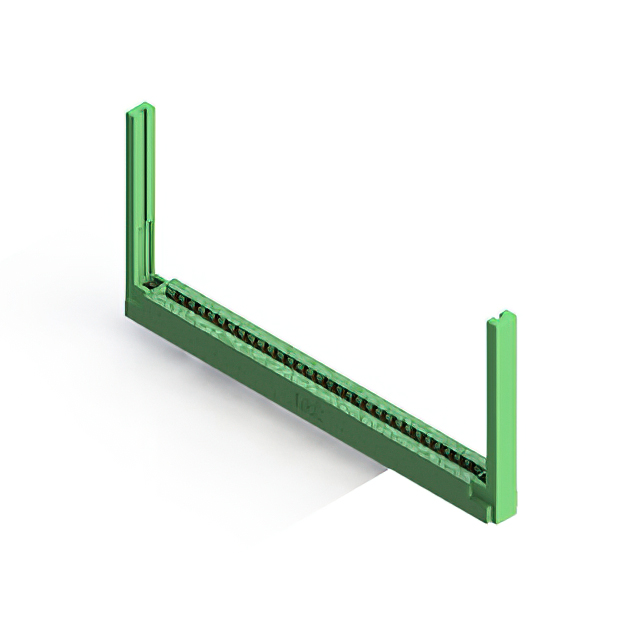

The EDAC Inc. 306-031-520-168 is a dual-sided card edge connector designed for panel and through-hole mounting. It features 62 positions with a 0.156-inch (3.96mm) spacing across two rows. The connector utilizes cantilever contacts with gold plating, rated for a maximum operating temperature of 105°C. It supports board thicknesses between 0.054 and 0.070 inches and includes flange features for secure installation.
Feature Summary
- Dual-sided female contact configuration for robust signal transmission
- Cantilever contact design ensures reliable mating engagement
- Gold-plated terminals provide corrosion resistance and low contact resistance
- Integrated flange with threaded inserts facilitates secure panel mounting
Applications
- Industrial control systems requiring high-density interconnects
- Communication equipment backplanes
- Medical device circuit boards
- Energy management system interfaces
Procurement Notes
Verify the specific suffix codes against the official EDAC ordering guide to ensure compatibility with required termination styles and mounting options. Confirm that the selected variant meets the necessary insulation resistance and current rating specifications for the target application environment before finalizing procurement orders.
Selection Notes
Select this component when a dual-row, 62-position connection is required with a 0.156-inch pitch. Ensure the PCB thickness falls within the supported range of 0.054 to 0.070 inches. Consider the through-hole termination and panel mount flange requirements for mechanical stability in the final assembly design.
Part Context
This part belongs to the EDAC 306 Series, which offers various configurations for card edge applications. The series provides multiple row counts, termination types, and mounting solutions. The 306-031-520-168 specifically addresses needs for higher pin counts with standard spacing and durable gold-plated contacts.
Replacement Considerations
Direct substitutes may include other EDAC 306 series variants with matching 62-position dual-sided layouts. Verify identical spacing, contact type, and mounting dimensions before cross-referencing with alternative manufacturers' equivalent connectors.
