Overview

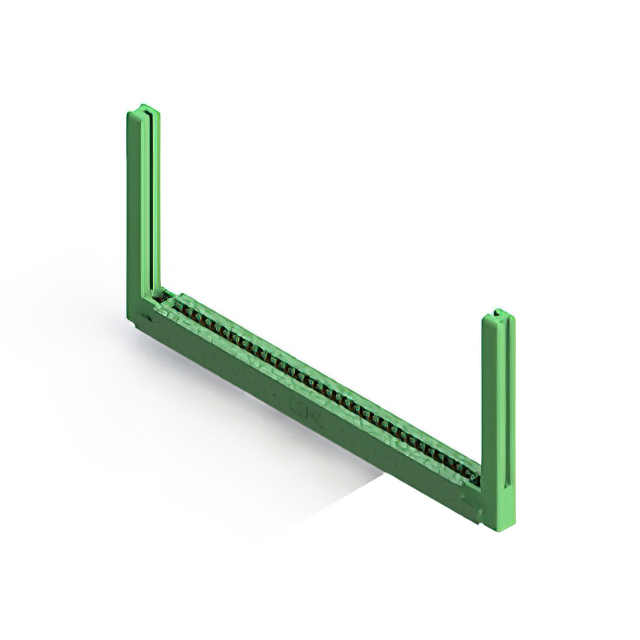

The EDAC Inc. 306-031-521-158 is a standard card edge connector designed for panel mount applications. It features a dual female configuration with 30 positions and a contact spacing of 3.96 mm (0.156 inches). The component accepts printed circuit boards with a nominal thickness of 1.57 mm. Contacts are gold-plated to ensure reliable signal transmission. The insulator body is constructed from high-temperature material suitable for demanding environments.

Feature Summary

• Dual female contact termination design
• High-temperature insulator construction
• Gold-plated contact surfaces

Applications

• Medical interconnect solutions
• Agricultural technology equipment
• Industrial control panels

Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm pin count, termination style, and plating specifications. Ensure compatibility with the target PCB thickness and mounting requirements before procurement. Confirm RoHS compliance status if required by project standards.

Selection Notes

Select this component when a vertical panel-mount card edge connector with 30 positions is required. The 3.96 mm pitch accommodates specific board layouts. Verify that the dual female termination matches the mating card edge design. Consider the high-temperature rating for thermal management needs.

Part Context

This part belongs to the EDAC 306 Series, which provides standard card edge connectors with various position counts and termination options. The series supports single and dual row configurations with different mounting styles. The 306-031-521-158 represents a specific variant within this broader product family.

Replacement Considerations

Consult official EDAC documentation for verified substitute part numbers. Cross-reference pin count, pitch, and termination type when evaluating alternatives.
